DIRECTIONAL LED - RECTANGULAR SURFACE MOUNT - 12-24VDC - 7 FLASH PATTERNS - AMBER

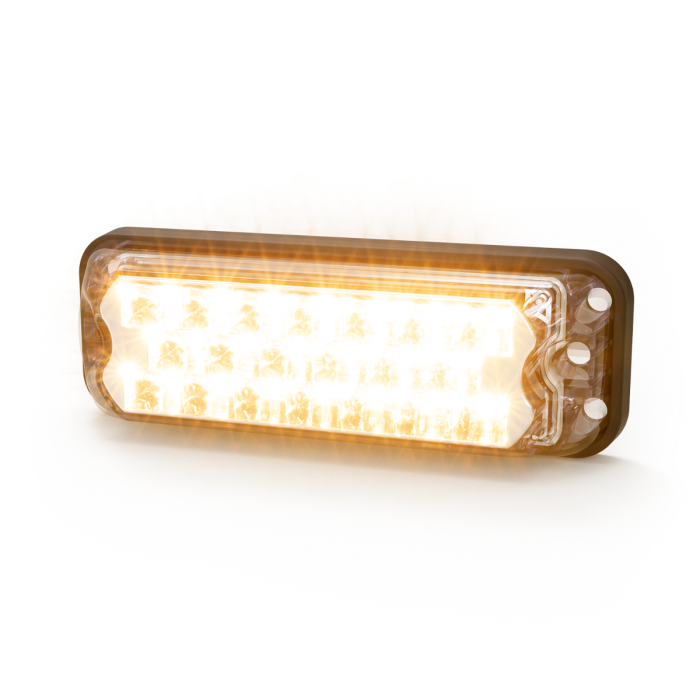

ECCO 3811A Amber Rectangular Surface Mount Directional LED – 12-24V, SAE Class I

The ECCO 3811A Directional LED Warning Light is one of ECCO's most popular and cost-effective warning lights, delivering outstanding output in a sleek, compact package. Designed for maximum visibility and reliability, this Amber LED surface mount light is an essential safety component for all fleet, utility, construction, and emergency vehicles.

Part of the versatile 3811 Series, the 3811A features 20 high-intensity Amber LEDs utilizing individual reflectors for superior directional light output. The tough, clear polycarbonate lens makes the unit discrete (clear/colorless) when not illuminated.

Engineered for universal use, this light operates on 12 VDC to 24 VDC systems, simplifying fleet integration. It draws an incredibly low 0.4 Amps for efficient operation. With 7 user-selectable flash patterns and synchronization capability, you can easily create complex warning systems. The durable, urethane-encapsulated electronics are built to withstand harsh environments, holding a robust IP67/IP69K weatherproof rating and SAE Class I approval for superior warning power.

Key Features & Specifications:

• Part Number: ECCO 3811A
• Mount Type: Rectangular Surface Mount (2-Bolt)
• Color: Amber Directional LED (Clear/Discrete Lens)
• LED Count: 20 High-Intensity LEDs
• Flash Patterns: 7 Selectable Patterns
• Voltage: 12-24 VDC (Multi-Voltage)
• Current Draw: Ultra-Low 0.4 Amps
• Approvals: SAE Class I, IP67/IP69K, CE, R10
• Dimensions (Approx.): 6.1" (L) x 2.1" (H) x 1.3" (D)
• Feature: Synchronization capable with other ECCO 3811/3861 units.
