DIRECTIONAL LED - OVAL GROMMET MOUNT - 12-24VDC - DUAL COLOR - AMBER/WHITE

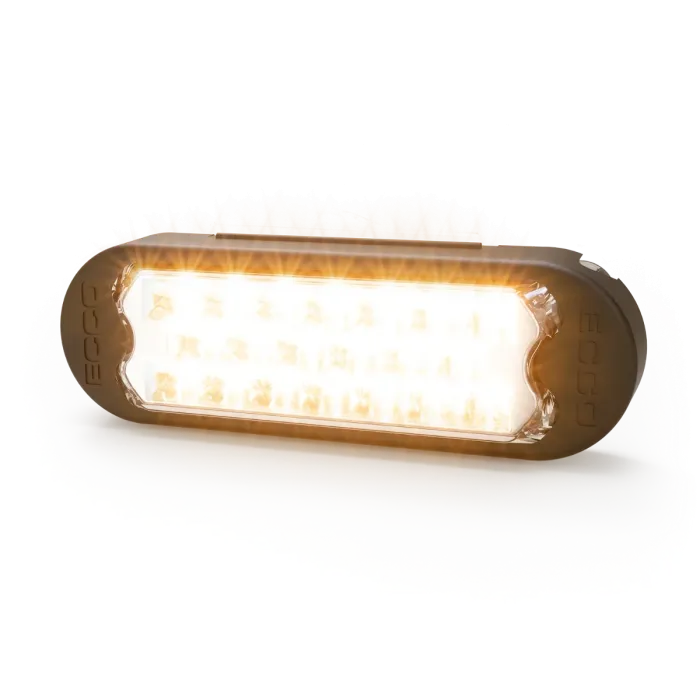

ECCO 3861AC — 6.1″ Dual-Color Directional LED (Amber / White, Surface or Grommet Mount, 12-24 V, Sync-Capable, 7 / 41 Flash Patterns)

Bring dependable, regulated warning coverage to your vehicle with the ECCO 3861AC, part of the ECCO 3811 / 3861 directional LED family. This module features 20 high-intensity LEDs with individual reflectors in a clear housing, with both amber and white output modes for flexible directional signaling. It is available in either surface-mount or grommet-mount versions and operates on 12–24 V DC systems with a low current draw of ~0.4 A. The 3861AC supports 7 flash patterns in single-color mode and up to 41 patterns in dual-color mode, and can synchronize with additional 3811 / 3861 modules for coordinated lighting. It is certified SAE Class I and includes ECCO’s standard 5-year warranty.

Key Features & Specifications

• Dual-color directional LED: Amber / White modes in one unit
• Mounting Types: Surface-mount or grommet-mount varieties available
• Length: 6.1″ (nominal)
• Voltage Range: 12–24 V DC
• Current Draw: ~0.4 A typical
• Flash Patterns: 7 patterns (single-color) / Up to 41 patterns (dual-color)
• Synchronization: Can sync with other 3811 / 3861 modules for uniform flashing across multiple lights
• Certification: SAE Class I directional, CA Title 13, CE, R10, RoHS
• Warranty: 5-year limited (common ECCO standard)
• Housing / Construction: Clear polycarbonate housing with encapsulated electronics, sealed design for durability

Why Choose the 3861AC?

• Delivers both amber and white directional warning in one discreet module
• Offers a broad pattern set and sync capability for fleet lighting coordination
• Available in both surface and grommet mount configurations to suit installation needs
• Low current draw and dual-voltage support simplify wiring and compatibility
• SAE Class I certified to meet regulated directional lighting standards

Applications & Use Cases

• Mounted along vehicle edges, body panels, or bumpers for directional coverage
• Install behind trim or flush mounts in tight spaces
• As supplemental directional lighting alongside main lightbars
• Retrofit upgrades from older directional modules

Installation Tips

• Select the mounting style (surface or grommet) based on the application and available cutout.
• Use appropriate gaskets or seals to guard against moisture ingress on body penetrations.
• Fuse the positive supply near its source, and use the appropriate wire gauge.
• Run ground to a clean, unpainted chassis point to avoid flicker or interference.
• Program and test patterns before mounting permanently.
• For multi-unit installs, wire the sync lines per ECCO’s specification to keep flash timing aligned.
• Periodically inspect lens, mounting hardware, and wiring for wear or damage.
