SKU
520-004
Manufactures SKU
ECCO 520-004
ALARM - BACK-UP - 97-0 DBA - 12-24VD
$36.67
EA

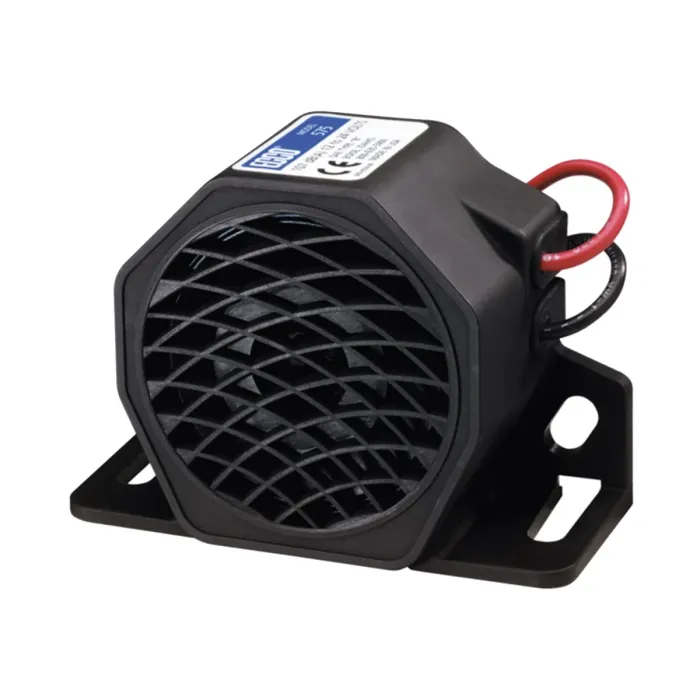

ECCO 520-004 Tonal Back-Up Alarm – 97 dB, 12-24V, 500 Series Surface Mount
Ensure maximum safety for your fleet with the ECCO 520-004 Back-Up Alarm. This reliable, compact warning device is part of ECCO's popular 500 Series, providing a cost-effective yet robust solution for heavy-duty and commercial vehicles.
The alarm emits a powerful 97 dB(A) tonal warning sound, effectively alerting pedestrians and other vehicles when your truck is reversing. Designed for extreme durability, the alarm features epoxy-encapsulated electronics sealed within a rugged, glass-filled nylon housing, offering superior protection against moisture, dust, vibration, and temperature extremes (-40°F to +185°F).
The 520-004 is SAE Type C certified and IP65 rated, making it suitable for exterior mounting. Its compact size and 2-bolt universal surface mount design maximize installation flexibility, while stud terminal connections ensure self-grounding and a secure electrical hookup. Operate reliably on all vehicles with a 12–24 VDC electrical system and an ultra-low 0.2 Amp draw.
Key Features & Specifications:
Ensure maximum safety for your fleet with the ECCO 520-004 Back-Up Alarm. This reliable, compact warning device is part of ECCO's popular 500 Series, providing a cost-effective yet robust solution for heavy-duty and commercial vehicles.
The alarm emits a powerful 97 dB(A) tonal warning sound, effectively alerting pedestrians and other vehicles when your truck is reversing. Designed for extreme durability, the alarm features epoxy-encapsulated electronics sealed within a rugged, glass-filled nylon housing, offering superior protection against moisture, dust, vibration, and temperature extremes (-40°F to +185°F).
The 520-004 is SAE Type C certified and IP65 rated, making it suitable for exterior mounting. Its compact size and 2-bolt universal surface mount design maximize installation flexibility, while stud terminal connections ensure self-grounding and a secure electrical hookup. Operate reliably on all vehicles with a 12–24 VDC electrical system and an ultra-low 0.2 Amp draw.
Key Features & Specifications:
- Part Number: 520-004
- Function: Exterior Vehicle Back-Up Alarm (Reversing Alarm)
- Sound Level: 97 dB(A) Tonal
- Voltage: 12–24 VDC
- Amperage: 0.2 Amps
- Mounting: 2-Bolt Surface Mount
- Construction: Glass-Filled Nylon Housing, Epoxy Encapsulated Electronics
- Ingress Protection: IP65 Rated (Dust and Water Jet Resistant)
- Certifications: SAE J994 Type C, UL, CE
Shipping Weight (lbs)
0.800000
Total Height
3
Total Width
4
