SKU
5597CAC-VM
Manufactures SKU
ECCO 5597CAC-VM
LED MINIBAR - REFLEX - 15in - ZERO OPTIC DOME - 12-24VDC - 18 FLASH PATTERNS - VACUUM MAGNET MOUNT - CLEAR DOME - AMBER/
$443.67
EA

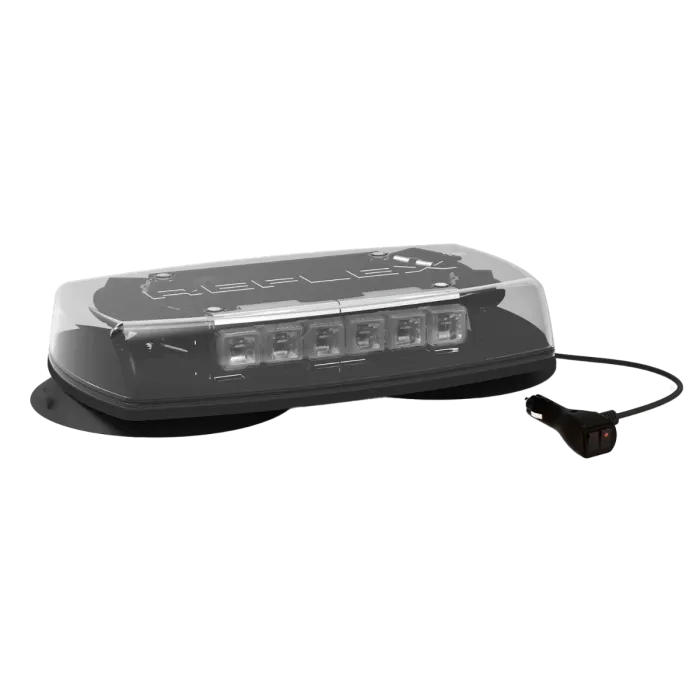

ECCO 5597 Series Reflex® 15" High-Output Dual-Color LED Minibar – Clear Lens, Amber/Clear Illumination, Vacuum-Magnet Mount | Part No. 5597CAC-VM
The ECCO 5597CAC-VM Reflex® LED Minibar is a high-performance, compact warning solution designed for maximum visibility and versatility. This 15-inch lightbar features advanced Lenticular Optic lenses combined with Reflective and TIR Optic LED modules, delivering superior focused front/rear warning and wide-angle side warning light output.
This dual-color unit features powerful Amber warning LEDs and brilliant Clear/White utility LEDs, allowing users to switch between warning and work light functions. The contemporary Clear Polycarbonate Lens ("Zero Optic Dome") ensures a discreet appearance while maximizing light transmission.
Engineered for quick, non-permanent deployment, the lightbar comes with a high-security Vacuum-Magnet Mount (VM) for exceptional retention on vehicle roofs, making it perfect for tow trucks, construction fleets, snow plows, utility vehicles, and roadside service. Power is supplied via a 12-24 VDC Cigarette Plug that includes both On/Off and flash pattern selection controls. Users can select from 18 flash patterns to suit various operating conditions.
Key Features & Specifications:
The ECCO 5597CAC-VM Reflex® LED Minibar is a high-performance, compact warning solution designed for maximum visibility and versatility. This 15-inch lightbar features advanced Lenticular Optic lenses combined with Reflective and TIR Optic LED modules, delivering superior focused front/rear warning and wide-angle side warning light output.
This dual-color unit features powerful Amber warning LEDs and brilliant Clear/White utility LEDs, allowing users to switch between warning and work light functions. The contemporary Clear Polycarbonate Lens ("Zero Optic Dome") ensures a discreet appearance while maximizing light transmission.
Engineered for quick, non-permanent deployment, the lightbar comes with a high-security Vacuum-Magnet Mount (VM) for exceptional retention on vehicle roofs, making it perfect for tow trucks, construction fleets, snow plows, utility vehicles, and roadside service. Power is supplied via a 12-24 VDC Cigarette Plug that includes both On/Off and flash pattern selection controls. Users can select from 18 flash patterns to suit various operating conditions.
Key Features & Specifications:
- Part Number: 5597CAC-VM
- Optics: Lenticular Optic Lens with combined Reflective and TIR Optic LED modules for maximum light efficiency.
- Color Configuration: Amber/Clear (White) Illumination under a modern Clear Lens.
- Safety Rating: SAE J845 Class I, California Title 13 (CA T13), CE, R10, IP69K rated.
- Mounting: Vacuum-Magnet Mount (VM) for secure, high-retention, temporary installation.
- Power: 12-24 VDC, 6.0 Amps; includes a Cigarette Plug with switch.
- Flash Patterns: 18 user-selectable flash patterns.
- Dimensions: 15.3" L x 9.3" W x 2.5" H (approximate).
- Warranty: 5-Year ECCO Warranty.
Shipping Weight (lbs)
3.800000
Total Height
3
Total Width
15
