LED BEACON - MEDIUM PROFILE - 12-80VDC - PULSE8 FLASH - BLUE

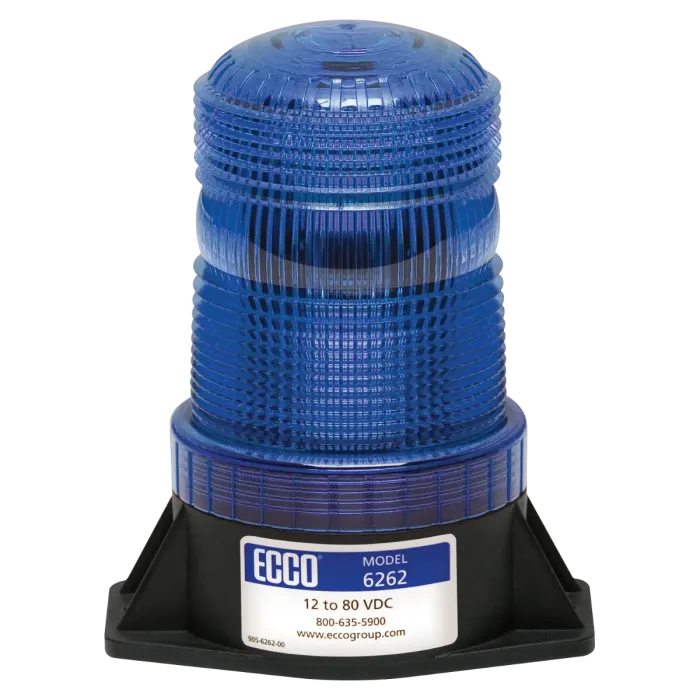

ECCO 6262B LED Beacon — Medium-Profile Blue, 2-Bolt Flange / ½″ Pipe Mount (12-80 V, Pulse8 Flash, Class III)

The ECCO 6262B is a rugged, maintenance-free LED warning beacon from ECCO’s 6262 Series, designed for demanding industrial, municipal, and utility applications. Offering a medium profile, it delivers strong visibility via a Pulse8 flash pattern (80 FPM × 8 pulses), with broad voltage compatibility and flexible mounting options. This beacon is well-suited for work trucks, safety vehicles, or equipment needing dependable visual warning.

Key Specifications & Features

• Voltage Range: 12 to 80 V DC (compatible with conventional, hybrid, and electric vehicular systems)
• Flash Pattern: Pulse8 (8 pulses per cycle) at ~80 FPM
• Mounting Options: 2-bolt flange or ½″ pipe mount (side wire exit)
• Dimensions: Height ~ 4.9 in | Width ~ 3.9 in
• Color / Lens: Blue single-color lens
• Certifications & Ratings: SAE J845 Class III, UL, CE, R10, IP66 / IP67, RoHS compliant
• Durability & Protection: Reinforced nylon base, epoxy-sealed electronics, thread-on polycarbonate lens, reverse polarity / surge / voltage spike protection
• Operating Temperature Range: –22 °F to +122 °F (–30 °C to +50 °C)
• Current Draw: ~0.12 A (typical for 6262 series)
• Warranty: 5 years (standard for the 6262 series)

Why Choose the ECCO 6262B?

• Wide voltage compatibility: Works across 12–80 V systems, making it suitable for many vehicle types
• Robust warning signature: The Pulse8 pattern ensures effective visual alerting in busy or harsh environments
• Flexible mounting options: Use either flange mount or pipe mount per your vehicle’s layout
• Industrial-grade design: Sealed, epoxy-encapsulated electronics and protective features resist harsh weather, vibration, and electrical transients
• Low-maintenance LED solution: Long life with minimal upkeep, ideal as a replacement for strobes or rotating beacons

Typical Applications

• Utility and maintenance trucks
• Municipal service vehicles
• Fleet operations (safety or warning lighting)
• Tow and recovery rigs
• Material handling equipment
• Construction, road-service, and emergency support vehicles

Installation & Best Practices

• Choose mounting method (flange or pipe) based on your mounting location constraints.
• Prepare and clean the surface before mounting for secure adhesion and seal integrity.
• Route wiring carefully, protect against abrasion, and include appropriate fuse protection.
• Avoid placing the beacon near extreme heat sources (exhausts, engine compartments).
• Periodically check for moisture intrusion, lens clarity, and mounting hardware integrity.

With its strong voltage range, reliable flash pattern, and rugged design, the ECCO 6262B is a strong choice for those needing dependable LED warning lighting on trucks and mobile equipment.
