LED BEACON - MEDIUM PROFILE - 12-80VDC - PULSE8 FLASH - GREEN

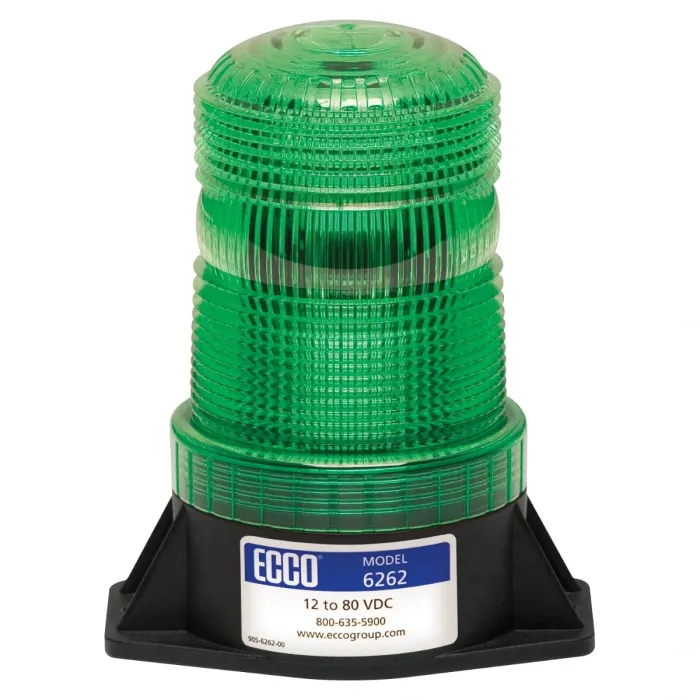

ECCO 6262G LED Beacon — Medium-Profile Green, 2-Bolt Flange / ½″ Pipe Mount (12-80 V, Pulse8 Flash, SAE Class III)

Bring dependable, maintenance-free warning lighting to your fleet with the ECCO 6262G, a green-lens variant in ECCO’s rugged 6262 series. Engineered for industrial, municipal, and utility applications, this beacon features a Pulse8 flash pattern (8 pulses per cycle), a wide 12 to 80 V operating range, and a medium-profile body with flexible mounting (2-bolt flange or optional ½″ pipe). With epoxy-sealed electronics, a reinforced nylon base, and surge protection built in, the 6262G is built to last in harsh environments.

Key Specs & Features

• Voltage Range: 12 – 80 V DC (ideal for both conventional and electric vehicle systems)
• Flash Pattern: Pulse8 — 8 flashes per cycle (approx. 80 FPM)
• Mounting: 2-bolt flange standard, side wire exit; optional ½″ pipe mount available in 6262 series
• Lens / Color: Green single-color lens
• Dimensions: Height ~ 4.9 in, width ~ 3.9 in
• Approvals / Ratings: SAE Class III, UL, CE, R10, UKCA, IP66/IP67, RoHS
• Durability & Protection: Reinforced nylon base filled with epoxy, reverse-polarity protection, surge/voltage spike protection, thread-on polycarbonate lens
• Temperature Range: –22 °F to +122 °F (–30 °C to +50 °C)
• Warranty / Life: 5-year warranty typical for the 6262 series

Why Choose the ECCO 6262G?

• Wide voltage compatibility lets you use it across mixed fleet systems (12 V through 80 V)
• Visual standout in green for applications needing green-warning signals or status indicators
• Reliable flash signature: Pulse8 is optimized for human visual detection in industrial environments
• Rugged construction: sealed, epoxy-protected electronics resist moisture, vibration, and contaminants
• Easy to mount or retrofit: standard flange mounting with optional pipe mounting in the series
• Low maintenance: LED longevity and built-in protections reduce upkeep

Ideal Applications

• Utility, municipal, and service truck fleets
• Construction, roadwork, and maintenance vehicles
• Industrial machinery and site equipment
• Green-status or safety signaling applications
• Anywhere robust, weather-resistant warning lighting is needed

Installation Tips & Best Practices

• Use a flat, rigid mounting surface and torque bolts per ECCO’s specs.
• Use properly gauged wiring and include a fuse near the source.
• Ensure wiring has good grounding and protection from abrasion or heat.
• Avoid mounting next to high heat zones (exhausts, engine compartments).
• Periodically inspect lens clarity, mounting hardware, and seal integrity in field conditions.

Add the ECCO 6262G to your product catalog for a green, dependable LED beacon that delivers rugged performance with flexibility.
