LED BEACON - REFLEX - 12-24VDC - 15 FLASH PATTERNS - GREEN

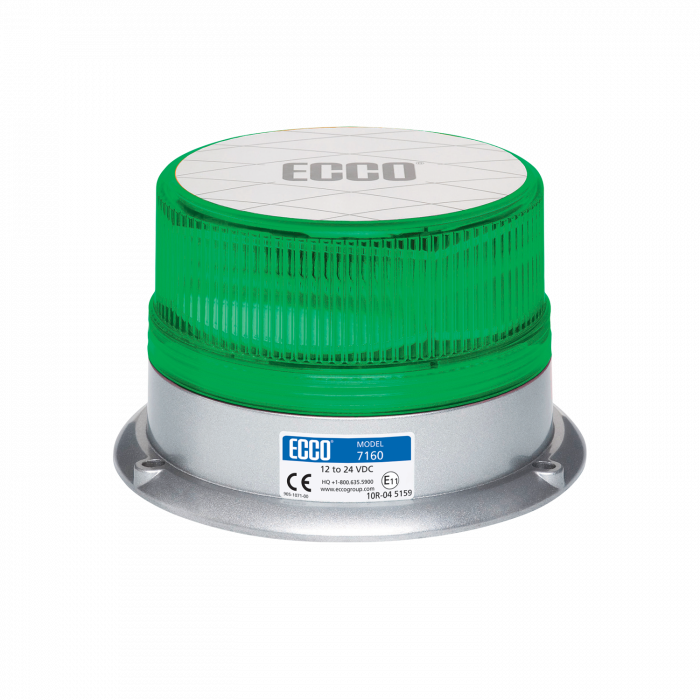

ECCO 7160G – Reflex® Series LED Beacon (Green Lens, 12-24 V, 2.0 A @ 12 V, SAE Class I)

The ECCO 7160G is part of the Reflex® Series beacon line, designed for high-intensity warning visibility with advanced features in a rugged, vehicle-ready beacon package. With a striking green lens, universal 12–24 V DC compatibility, and approximately 2.0 A draw at 12 V, this beacon delivers dependable performance for emergency, utility, fleet, and mobile-equipment applications. The 7160 Series offers 23 selectable flash patterns, hi/lo intensity control, synchronization capability, and is backed by ECCO’s five-year warranty.

Key Features & Specifications

• Lens Color: Green (model 7160G)
• Voltage Range: 12-24 V DC
• Current Draw: Approx. 2.0 Amps at 12 V DC
• Flash Patterns: Up to 23 built-in patterns (Reflex Series spec)
• Mounting Options: 3-Bolt Flange / 1″ Pipe, also Vacuum-Magnet variants available in series
• Certifications: SAE J845 Class I, CA Title 13 (for many variants), IP66 rating on select models
• Warranty: 5-year limited warranty from ECCO

Why Choose the 7160G?

• High-intensity LED beacon optimized for warning visibility with low maintenance.
• Dual voltage compatibility (12/24 V) means one product works across fleet vehicles.
• Flash pattern flexibility and sync capability allow integrations with other warning systems.
• Rugged construction and long warranty ensure reliability in demanding mobile environments.
• Green-lens variant is ideal for applications that require green warning lighting (e.g., security, service, municipal).

Typical Applications

• Mobile-service trucks, municipal vehicles, utility bodies requiring green warning beacons
• Equipment mounted on dump trucks, work trucks, and heavy-duty vehicles operating in 12/24 V systems
• Retrofitting older halogen or strobe beacons to modern LED technology
• Fleet applications requiring synchronized multiple beacons for broad vehicle coverage

Installation Tips

• Securely mount the beacon using the 3-bolt flange or 1″ pipe mount—ensure good chassis grounding.
• Connect to the proper supply voltage (12 V or 24 V) with appropriate fuse protection.
• Test and select the desired flash pattern from the built-in 23-pattern library before final mounting.
• For synchronized operation of multiple units, follow ECCO’s sync wiring instructions.
• Periodically inspect the lens and mounting hardware to maintain optimal output and durability.
