LED BEACON - PROFILE - 12-36VDC - PULSE8 FLASH - VACUUM MAGNET MOUNT - BLUE

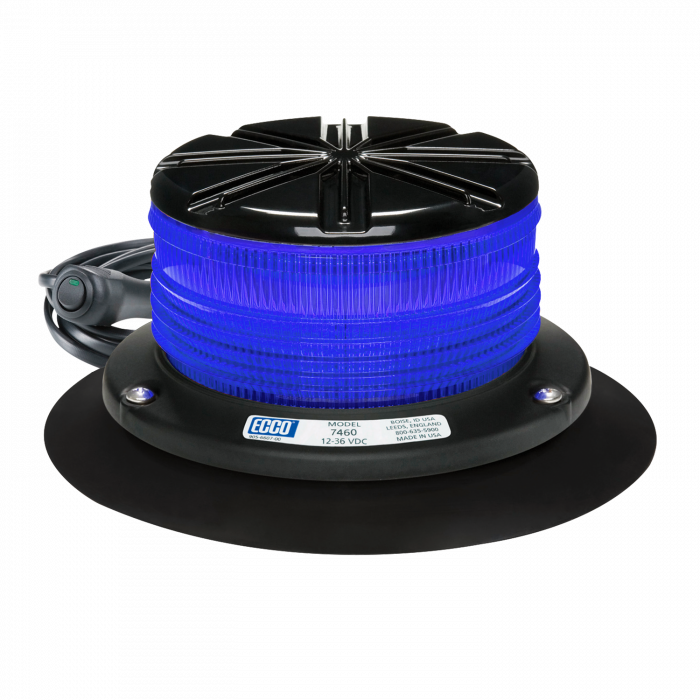

ECCO 7460B-VM Profile™ LED Beacon — Blue, Vacuum / Magnet Mount (12–36 V, Pulse8 Flash, Low Profile Class I)



The ECCO 7460B-VM from ECCO’s Profile™ 7460 series delivers high-visibility warning performance in a compact, versatile package. With a vacuum / magnet mounting system, the 7460B-VM is ideal for temporary or semi-permanent deployment on service vehicles, utility trucks, or fleet units. The unit features ECCO’s Pulse8 flash pattern, a sealed LED design, overhead heatsink architecture, and compatibility with 12–36 V DC systems.



Key Features & Specs

• Voltage: 12 – 36 V DC — suitable for most truck electrical systems
• Mounting: Vacuum / magnetic mount (no drilling required)
• Flash Pattern: Pulse8 (8 pulses per cycle, ~75 FPM) — optimized for peripheral visibility
• Lens / Color: Blue (single color)
• Current / Power: About 3.6 A draw under nominal conditions
• Approvals / Ratings: SAE J845 Class I, CE, R10, IP67
• Dimensions / Weight: 3.1″ height, 6.4″ width (approx) — vacuum/magnet version ~8″ dia × 4″ high, ~2.5 lb
• Warranty: 5 years (Profile™ series standard)

Why the 7460B-VM Stands Out

• Tool-free, no-drill mounting — the vacuum / magnet system gives you fast deployment and flexibility to move the unit as needed.
• Low-profile but high impact — the overhead heatsink design allows for a compact form and optional pipe mounting (if the flange is removed).
• Efficient and effective flash — Pulse8 is tuned for human peripheral vision, making the warning signal more noticeable in real-world driving scenarios.
• Durable sealed construction — designed for the rigors of field use with resistance to moisture, dust, vibration, and electrical transients.
• Broad compatibility — works with 12–36 V systems, making it useful across a wide range of vehicles.

Typical Applications

• Service, utility, and maintenance trucks
• Tow/recovery vehicles
• Municipal or public works units
• Rental or staged fleet vehicles
• Temporary safety or warning lighting where you want to avoid drilling

Installation & Operating Notes

• Surface prep: Clean and degrease the mounting surface fully to maximize magnet / suction retention.
• Mounting: Apply vacuum + magnet carefully; avoid sliding after placement to prevent paint damage.
• Speed caution: Maximum recommended vehicle speed when using vacuum mount only is ~65 mph (104 km/h) to avoid risk of detachment.
• Power wiring: Use appropriately gauged wire, fuse the circuit (5 A recommended), and ensure solid ground.
• Optional permanent mount: Remove the flange when using pipe mounting (1″ NPT) for semi-permanent installs.
• Routine checks: Inspect the vacuum / magnet base, wiring, and lens periodically, especially in vibration-intense environments.

With its mix of portability, efficiency, and high-quality build, the ECCO 7460B-VM is a strong choice when you want a powerful LED warning beacon without permanent installation.
