LED BEACON - PROFILE - 12-36VDC - PULSE8 FLASH - BLUE

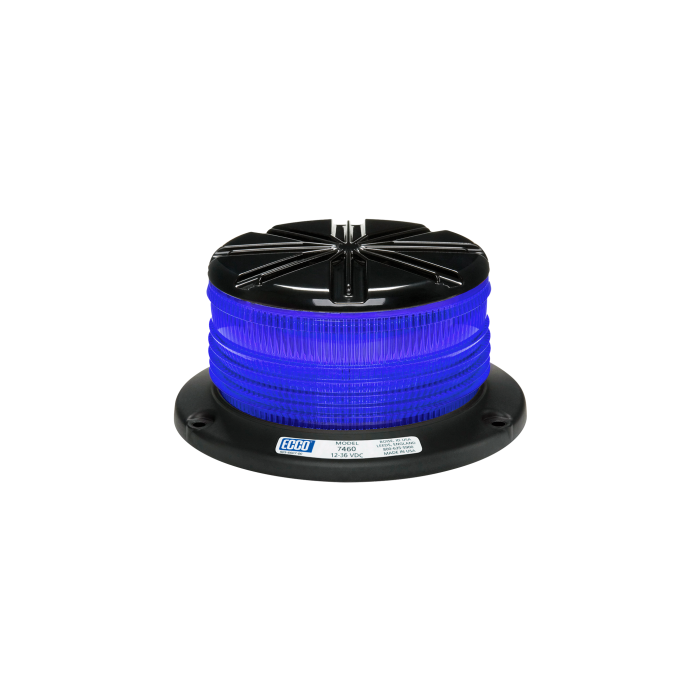

ECCO 7460B Profile™ LED Beacon — Low-Profile Blue, 3-Bolt / 1″ Pipe Mount (12–36 V DC, Pulse8 Flash, Class I)

The ECCO 7460B is a compact, high-performance warning beacon from ECCO’s Profile™ series, engineered for demanding fleet, utility, and safety applications. Featuring a low-profile design with overhead heat sink, the 7460B delivers dependable warning performance using the Pulse8 flash pattern, while offering flexible mounting via 3-bolt flange or 1″ pipe configuration.

Key Features & Specifications

• Voltage Range: 12 – 36 V DC, making it compatible with most vehicle electrical systems.
• Flash Pattern: Pulse8 (8 pulses per cycle, ~75 FPM) — optimized for peripheral visibility in warning applications.
• Mounting Options: 3-bolt flange mount or 1″ pipe mount (flange can be removed for pipe mounting)
• Lens / Color: Blue single-color lens
• Current Draw: ≈ 3.6 A
• Protection & Ratings: SAE J845 Class I, CE, IP67 (sealed enclosure for moisture & dust)
• Operating Temperature Range: –22 °F to +122 °F (–30 °C to +50 °C)
• Warranty: 5 years (typical ECCO Profile series warranty)
• Design Notes: Overhead heatsink design allows for more discreet appearance and better heat dissipation; flange can be removed to allow for unobtrusive pipe mounting.

Why the ECCO 7460B Delivers Value

• Compact yet powerful: Despite its low profile, it delivers effective warning visibility using LED technology
• Flexible mounting: Flange or pipe mounting adapts to a variety of vehicle setups
• Efficient design: Lower current draw and sealed assembly reduce maintenance
• Durable construction: Designed to withstand harsh field conditions, with high ingress protection
• Reliable warranty: Backed by ECCO’s 5-year coverage in the Profile series

Typical Applications

• Utility and service trucks
• Municipal and public works vehicles
• Tow, recovery, and roadside assistance units
• Maintenance and safety fleets
• Any vehicle requiring compact, high-visibility warning lighting

Installation & Best Practices

• Choose mounting method (flange or pipe) before installation; if pipe mounting, remove flange and use appropriate bracket.
• Clean and prepare the mounting surface for best seal and stability.
• Use proper gauge wiring and fuse protection matched to voltage and current.
• Ensure adequate clearance above the beacon for ventilation (heat dissipation).
• Periodically inspect the unit for moisture intrusion, wiring integrity, and proper function.

Add the contrast of powerful, reliable warning performance to your fleet with the ECCO 7460B Profile LED beacon — compact, versatile, and built for the road.
