LED BEACON - PULSE II - LOW PROFILE - 12-48VDC - 11 FLASH PATTERNS - CLEAR

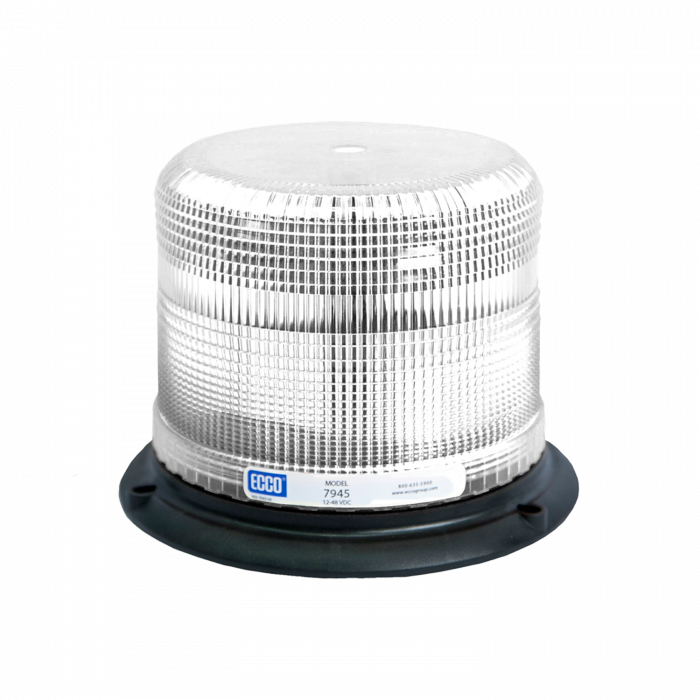

ECCO 7945C LED Beacon — Pulse® II Low-Profile, Clear Lens (12–48 V, 11 Flash Patterns, 3-Bolt / 1″ Pipe Mount / Vacuum / Tape Options)

Stand out in any work zone or mobile environment with the ECCO 7945C, part of ECCO’s Pulse® II series. This compact but powerful LED warning beacon delivers proven performance and flexibility with a clear lens, multiple mounting options, and 11 selectable flash patterns—all in a low-amp, low-profile package.

Key Features & Specifications

• Voltage Range: 12–48 V DC
• Flash Patterns: 11 selectable flash modes for customizable warning performance
• Mounting Options: 3-bolt flange / 1″ pipe permanent mount, vacuum / magnet, or high-bond tape options
• Lens / Color: Clear (transparent) single-color lens for full output
• Current Draw / Power: ~1.3 A @ nominal voltage
• Dimensions: Approx. 4.9 in height, 6.8 in diameter in low-profile configuration
• Approvals / Ratings: Suitable for SAE Class II warning applications, CE, UL, etc.
• Operating Temperature Range: –22 °F to +122 °F (–30 °C to +50 °C)
• Material & Durability: Reinforced polypropylene base, polycarbonate lens, sealed electronics for field durability
• Warranty: 5 years (standard for the 7945 series)

Why Choose the ECCO 7945C?

• Flexible mounting options let you deploy this beacon permanently or temporarily, depending on the job site.
• Selectable flash modes give you adaptability for different warning needs, weather, or regulations.
• Compact yet powerful: low-profile design keeps drag and wind clearance minimal while delivering solid warning visibility.
• Low power draw makes it efficient for continuous use.
• Rugged construction ensures it holds up in work environments—moisture, vibration, dust, and temperature extremes.
• Clear lens version maximizes output and is well suited for use with colored overlay lenses if needed.

Common Applications

• Utility, service, and maintenance trucks
• Tow, recovery, and roadside assistance vehicles
• Municipal / public works fleets
• Work zones, safety and construction equipment
• Temporary installations where non-drill mounting (vacuum / tape) is preferred

Installation & Tips

• Choose your mounting method before ordering (flange, pipe, vacuum/magnet, or tape).
• Clean the surface thoroughly before applying vacuum or tape mount to maximize adhesion.
• Use proper gauge wire and fuse the supply line near the source.
• Confirm selection of the desired flash pattern before finalizing wiring or mounting.
• Avoid mounting near excessive heat sources or obstructed areas.
• Periodically inspect seals, lens, and fasteners to maintain integrity in harsh conditions.

Equip your fleet or job site with the ECCO 7945C for dependable, visible, and versatile LED warning performance.
