LED BEACON - PULSE - 12-24VDC - 11 FLASH PATTERNS - AMBER

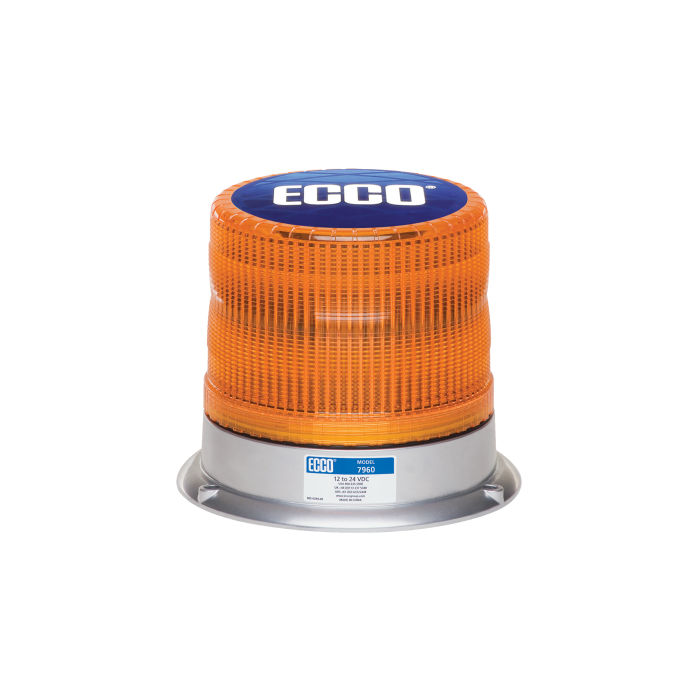

ECCO 7960 Pulse® Series Amber LED Beacon - 7960A (SAE Class 1)

The ECCO 7960A Pulse® Series LED Beacon is engineered for superior visibility and rugged durability, making it the ideal warning light for heavy-duty commercial vehicles, construction equipment, utility trucks, and agricultural machinery.

Key Features & Benefits:

• Unrivaled Light Intensity: Achieves SAE Class I certification, ensuring maximum brightness and visibility over long distances in all weather conditions, a critical safety requirement for highway and job site use.
• Built to Last: Features a corrosion-resistant, die-cast aluminum base and a tough polycarbonate lens. The electronics are fully epoxy-encapsulated for superior protection against dust, moisture (IP56 rating), and high-vibration environments, guaranteeing a long, maintenance-free lifespan.
• Versatile Operation: Operates on a wide 12-24 VDC range and offers 11 selectable flash patterns (including double and quad flash) to meet diverse application requirements. Flash mode is easily changed via a circuit board microswitch beneath the thread-on lens.
• Flexible Mounting: Designed for permanent installation with a versatile 3-bolt flange or a standard 1-inch pipe mount option, ensuring a secure fit on any truck or heavy equipment application.
• No Maintenance: This solid-state LED design easily replaces older, high-maintenance rotating or strobe beacons with modern technology, reducing vehicle downtime and operating costs.

Technical Specifications:

• Part Number: 7960A
• Series ECCO: 7960 Pulse®
• Light Source: LED
• Color/Lens: Amber
• Voltage: 12-24 VDC
• Amperage: 2.5 A (Max)
• Class Rating: SAE J845 Class I
• Mounting: 3-Bolt Flange or 1" Pipe Mount
• Warranty: 5 Year Warranty
