- Mounting: Permanent Mount: 3-Bolt Flange or 1-inch Pipe Mount.
- Light Output: High-intensity Red LED illumination, certified SAE J845 Class I.
- Durability: Epoxy-filled aluminum base for superior resistance to vibration and moisture.
- Voltage: Multi-voltage 12-24V DC operation.
- Flash Patterns: Selectable Double or Quad Flash (80/65 FPM) with Hi/Lo intensity control.
- Visibility: 16 high-intensity 3-watt LEDs.
- Construction: Thread-on polycarbonate lens for simple pattern changes.
- Approvals: Meets SAE Class I, CE, R10.
- Warranty: Protected by ECCO’s limited 5-Year Warranty.
SKU
7960R
Manufactures SKU
ECCO 7960R

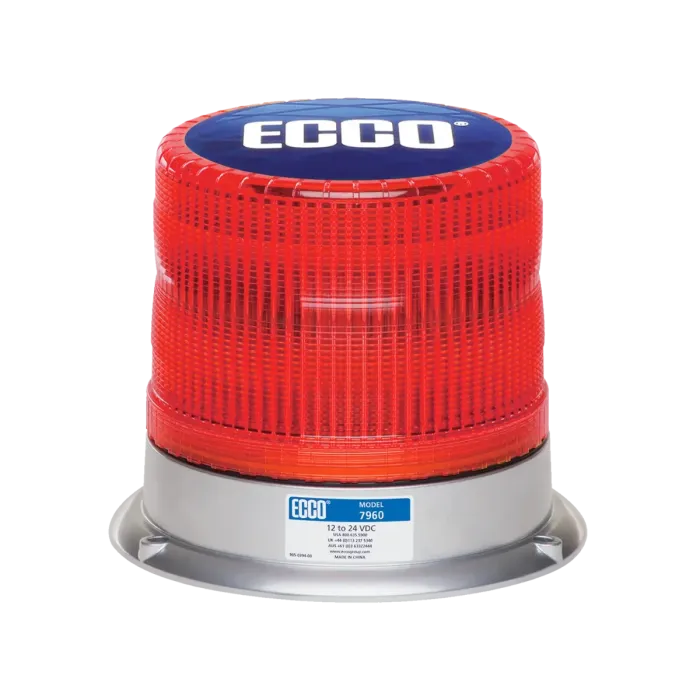

ECCO 7960R Pulse® LED Beacon: Red, SAE Class I Permanent Mount (3-Bolt/Pipe), 12-24V
$234.20
EA
The ECCO 7960R Pulse® Series LED Beacon is a heavy-duty, permanent mount warning light engineered for industrial and commercial vehicles requiring uncompromising visibility. As a robust, fixed installation unit, the 7960R features a versatile 3-Bolt or 1-inch Pipe Mount for secure, long-term attachment to truck cabs, machinery, and equipment.
Achieving the highest output rating of SAE J845 Class I, this beacon utilizes 16 high-intensity 3-watt Red LEDs to deliver a powerful, 360-degree warning signal. Unlike temporary lights, the 7960R's permanent design includes fully epoxy-encapsulated electronics within a corrosion-resistant die-cast aluminum base, ensuring maximum resistance against extreme vibration, moisture, and dust for severe-duty applications. It operates on a 12-24V DC system and offers selectable flash patterns, including high-impact Double (80 FPM) or Quad (65 FPM) flashes, along with Hi/Lo intensity control. Upgrade from old strobe or rotating beacons to the reliable, maintenance-free performance of the ECCO 7960R.
Key Details
Shipping Weight (lbs)
3.940000
Total Height
7
Total Width
6
