CONCEALED LED - HIDE-A-LED (4 LED) - 12-24VDC - CLEAR

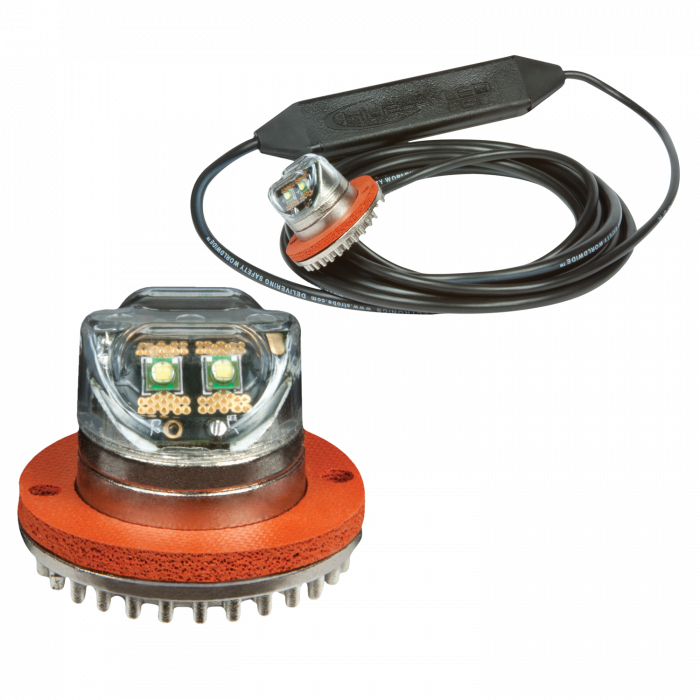

ECCO 9011C Hide-A-LED™ Concealed Directional LED Warning Light (Clear Lens, 4 LEDs, 1″ Mount, 16 Flash Patterns)

The ECCO 9011C is a compact, high-intensity directional LED warning light designed for discreet installation in vehicle lighting assemblies. Part of ECCO’s 9011 Hide-A-LED™ line, it fits a 1″ mounting hole and installs with a 2-bolt mount, making it ideal for embedding in headlamps, tail lamps, or marker housings. Its 4 high-output LEDs produce wide-angle dispersion, and the unit supports 16 selectable flash patterns. The all-in-one design includes an in-line sealed driver, eliminating the need for remote power modules. When off, the unit appears colorless, maintaining a hidden aesthetic.

Key Features & Specifications

• Fits 1″ hole, mounts via 2-bolt hardware for secure integration
• 4 LEDs in a single head configuration for directional warning lighting
• 16 flash patterns including single, double, triple, quad, deci, cycle all, etc.
• Can synchronize multiple units (flash in unison or alternately)
• Low-profile design (~1.5″ head length) for installation in tight spaces
• Clear / colorless when off — maintains stealth appearance when not lit
• Operates on 12–24 V DC systems (typical vehicle voltages)
• Wide-angle optics that maximize secondary reflections off internal housings
• Sealed in-line driver — no external power module required

Why Choose the ECCO 9011C

• Perfect for discreet integration into existing vehicle light housings
• Maintains factory aesthetics while adding functional warning lighting
• Flexible flash pattern options and synchronization make it ideal for coordinated setups
• Compact and low maintenance — embedded, sealed, robust for vehicle use
• Great for fleets or emergency vehicles that want hidden but powerful lighting

Typical Applications

• Integrated warning LEDs inside headlamps, tail lamps, marker lights
• Low-profile lighting retrofits for service, utility, or emergency vehicles
• Auxiliary or accent lighting where external pods are undesirable
• Synchronized array lighting using Hide-A-LED units

Installation & Best Practices

• Mount in a clean, flat area; drill a 1″ hole and secure the 2-bolt flange.
• Use grommets or bulkhead seals where wiring passes through panels.
• Tighten hardware securely but avoid over stress on the LED unit.
• Test all 16 flash modes before locking in settings.
• When using multiple units, follow ECCO’s sync wiring instructions.
• Periodically inspect lens, wiring, and mounting hardware in high-vibration environments.
