LED BEACON - SQUARE - REINFORCED POLYPROPYLENE BASE - MEDIUM PROFILE - 12-24VDC - 24 FLASH PATTERNS - AMBER

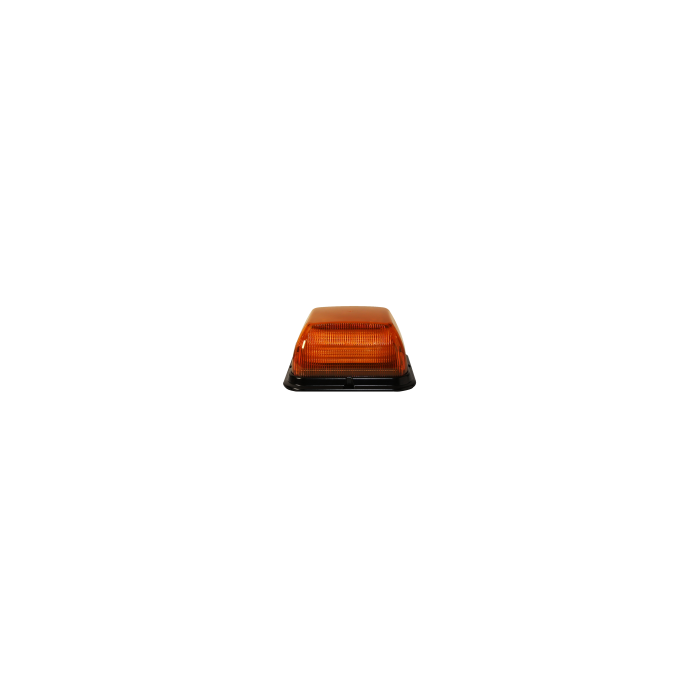

ECCO EB7185AAA – Dual-Color Square LED Beacon (4-Bolt & Vacuum/Magnet Mount, 24 Flash Patterns, SAE Class I)

Upgrade your vehicle’s warning lighting with the ECCO EB7185AAA, a dual-color square LED beacon that combines flexibility, durability, and high visibility. Designed for demanding fleet, municipal, utility, and emergency applications, this beacon supports both 4-bolt flange mounting and vacuum/magnet installation options. With 24 selectable flash patterns and synchronization capability, it delivers dynamic signaling performance in a compact, rugged package.

Key Features & Specifications

• Mount Options: 4-bolt flange or vacuum/magnet mount (versatile for different installations)
• Lens / Color: Dual-color (Amber / Clear) square lens for configurable signaling
• Flash Patterns: 24 selectable modes, including simulated rotate and standard flash types
• Certifications & Ratings: SAE Class I, California Title 13, R10, IP55, AMECA, RoHS
• Size / Dimensions: Height ~ 3.3 in; Length/Width ~ 6.5 in
• Durability Design: Epoxy encapsulated circuitry, polycarbonate lens, and robust base materials resist moisture, dust, and vibration
• Warranty: (When sold with ECCO’s standard policy) — often multi-year warranty per ECCO’s series terms

Why Choose the EB7185AAA?

• Mounting flexibility: You can choose permanent flange mount or removable vacuum/magnet mount to adapt to different vehicles
• Rich pattern choices: 24 flash modes let you fine-tune the visual effect to match your vehicle’s mission
• Dual-color signals: Amber or clear output lets you adapt the beacon’s light color for varying conditions
• Built for harsh environments: Sealed and rugged design ensures reliable performance under field conditions
• Sync across units: Wire multiple beacons to flash in unison, delivering consistent warning visuals

Common Applications

• Utility, service, or maintenance trucks
• Tow and recovery vehicles
• Municipal/work zone fleets
• Roadside safety, construction, and field operations
• Vehicles needing configurable or temporary warning lighting

Installation & Use Notes

• Clean and flatten the mounting surface before flange or vacuum/magnet installation to ensure proper adhesion.
• Match the wiring and fuse to your vehicle’s voltage system (commonly 12 V or 24 V).
• Use ECCO’s wiring diagrams when synchronizing multiple units to ensure consistent flash timing.
• Avoid mounting in high-heat zones (near exhausts or engines) to prolong life.
• Periodically inspect the seal and mounting integrity for wear, vibration impacts, or moisture ingress.

Let the ECCO EB7185AAA bring configurable, high-visibility warning light performance to your fleet — with the robustness and flexibility professionals demand.
