CAMERA - GEMINEYE - COLOR - FLUSH - INFRARED - 4 PIN

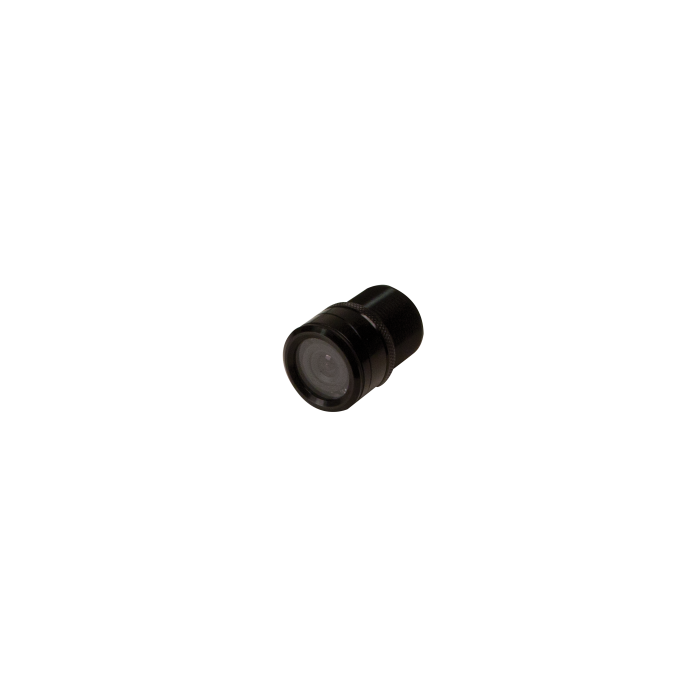

ECCO EC2015-C Gemineye Flush-Mount CMOS Camera (4-Pin, Color, IR Night Vision, 120° Field of View)
Upgrade your vehicle’s visibility with the ECCO EC2015-C, a high-quality flush-mount camera designed for demanding environments. This camera offers a sleek, low-profile flush installation suitable for bumpers or body panels, while providing essential safety features like full-color CMOS video, 10 built-in IR LEDs for night visibility, and a 120° wide lens angle. With robust weather sealing (IP67), automatic day/night switching, and compatibility with ECCO’s wired camera systems, the EC2015-C is perfect for fleets, service trucks, emergency vehicles, and OEM retrofits.
Features & Specifications
- Camera Type: CMOS color, flush-mount design
- Lens / Angle: 120° field of view for wide area coverage
- IR / Night Vision: 10 infrared LEDs for clear imaging in low light or night conditions
- Automatic Day/Night Sensor: Switches to B&W mode in low light automatically
- Connector: 4-pin waterproof interface for secure signal and power connection
- Flush Mounting: Designed to mount flush in body panels or bumpers for a clean look
- Operating Conditions:
- Temperature range: –22 °F to +158 °F (–30 °C to +70 °C)
- Housing: aluminum alloy body with weather sealing (IP67) for harsh conditions
- Power / Consumption: Low power draw; suitable for 12 V DC systems
- Certifications / Approvals: CE, FCC, RoHS compliance
Why the EC2015-C Is a Top Choice
- Discrete flush installation: Provides a low-profile, factory appearance with hidden mounting
- Strong night performance: Infrared LEDs ensure clear imaging even in extremely low light
- Robust build for vehicle use: Sealed, temperature-rated, and vibration-resistant design
- Wide angle coverage: 120° field of view captures broad scenes behind or around the vehicle
- Plug-and-play with ECCO systems: Matches ECCO’s wired camera platforms and modules
- Ideal for safety / backup applications: Enhances awareness and reduces blind spots
Common Use Cases
- Rearview / backup camera on trucks, vans, and trailers
- Side or curbside cameras for safer maneuvering
- Emergency or fleet vehicles requiring integrated camera systems
- OEM or aftermarket retrofit installations
- Work trucks, utility vehicles, and service fleets with rugged requirements
Installation Tips
- Choose a clean, flat mounting surface and cut precise hole to match the flush mount.
- Ensure wiring passes through a grommet or protected opening to avoid chafe.
- Use the 4-pin waterproof connector and seal properly to protect against moisture.
- After installation, aim and test the camera view under various lighting conditions.
- Inspect periodically for lens cleanliness, connector integrity, and mounting stability.
Add the ECCO EC2015-C to your catalog as a reliable, high-performance flush-mount camera solution built for demanding vehicle environments and modern safety needs.
