REVERSING SENSOR SYSTEM - CAMERA TYPE CMOS - VIEWING ANGLE 120 DEGREES - CAMERA RESOLUTION 720K PIXELS - MONITOR TYPE PERMANENT MOUNT - MONITOR SIZE 7in - IP RATING IP69K - FEATURESinTEGRATED ULTRASONIC PROXIMITY SENSORS - TOUCHSCREEN MENU CONTROL - (3) CAMERA EXPANDABLE - POWER REQUIRED 12 TO 24VDC - INCLUDES MONITOR - 65ft CAMERA CABLE - CAMERA - SENSOR KIT - MANUFACTURERS WARRANTY LENGTH 1 YR.
SKU
EC7004-SK
Manufactures SKU
ECCO EC7004-SK
CAMERA/SENSOR KIT - GEMINEYE - 7.0in LCD MONITOR - COLOR - AUDIO - 4 SENSORS - EXPANDABLE UP TO 3 CAMERAS - 12-24VDC (IN
$1,262.93
EA

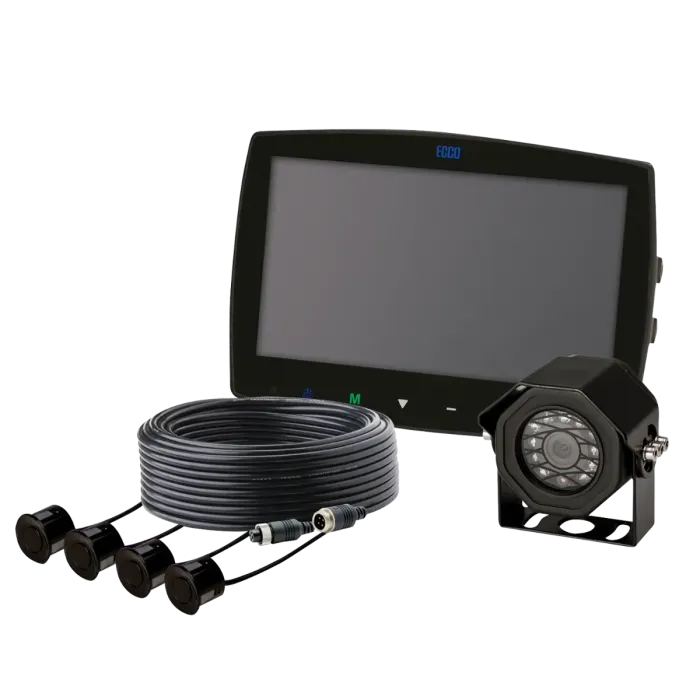

ECCO EC7004-SK Gemineye™ 7" Reversing Camera and Ultrasonic Sensor System Kit
Maximize safety and eliminate blind spots on your heavy-duty truck or fleet vehicle with the ECCO EC7004-SK Gemineye™ Camera/Sensor Kit. This premium system integrates a high-resolution color backup camera with an ultrasonic proximity sensor system, offering both visual confirmation and audible/visual warnings of obstacles. This two-in-one approach provides an unparalleled level of passive protection, drastically reducing the risk of costly backing accidents.
The kit is engineered for rugged commercial applications, operating flawlessly across a wide voltage range (12V-24V DC) and featuring an IP69K-rated camera to withstand extreme temperature and high-pressure washdowns.
Key Components & Features:
Maximize safety and eliminate blind spots on your heavy-duty truck or fleet vehicle with the ECCO EC7004-SK Gemineye™ Camera/Sensor Kit. This premium system integrates a high-resolution color backup camera with an ultrasonic proximity sensor system, offering both visual confirmation and audible/visual warnings of obstacles. This two-in-one approach provides an unparalleled level of passive protection, drastically reducing the risk of costly backing accidents.
The kit is engineered for rugged commercial applications, operating flawlessly across a wide voltage range (12V-24V DC) and featuring an IP69K-rated camera to withstand extreme temperature and high-pressure washdowns.
Key Components & Features:
- 7.0" LCD Touchscreen Monitor: High-resolution color monitor (EC7003-M) provides clear, optimal viewing with easy-to-use touchscreen controls.
- Integrated Proximity Sensors: Includes four (4) remote ultrasonic sensors (EC-RS04) that actively detect obstacles and alert the driver visually on the monitor and audibly, even when the driver isn't actively watching the screen.
- CMOS Infrared Camera: Features a rugged camera (EC2015-C) with 11 IR LEDs for excellent color vision and reliable night vision in low-light conditions.
- Expandable System: The monitor is capable of supporting up to three cameras in total, allowing you to monitor additional critical blind spots (e.g., side view or front view) using optional cameras.
- Heavy-Duty Rated: Camera is IP69K rated (protection against dust and high-pressure, high-temperature water jets) and features a 10G vibration rating.
- Wide Vehicle Compatibility: Supports universal 12V-24V DC operation, perfect for commercial trucks, construction equipment, buses, and waste management vehicles.
- Part Number: EC7004-SK
- System Type: Wired Camera & Ultrasonic Sensor Kit
- Monitor Size: 7.0-inch LCD Color
- Camera Type: CMOS Infrared (11 LEDs)
- Sensors Included: 4 Ultrasonic Proximity Sensors
- Expandability: Up to 3 Cameras
- Voltage: 12-24 VDC
- Camera Rating: IP69K, 10G Vibration
Features & Benefits
Shipping Weight (lbs)
7.580000
Total Height
7
Total Width
7
