DIRECTIONAL LED - STICK-A-LED - (6 LED) - RECTANGULAR SELF-ADHESIVE SURFACE MOUNT - 12-24VDC - QUAD FLASH - CLEAR

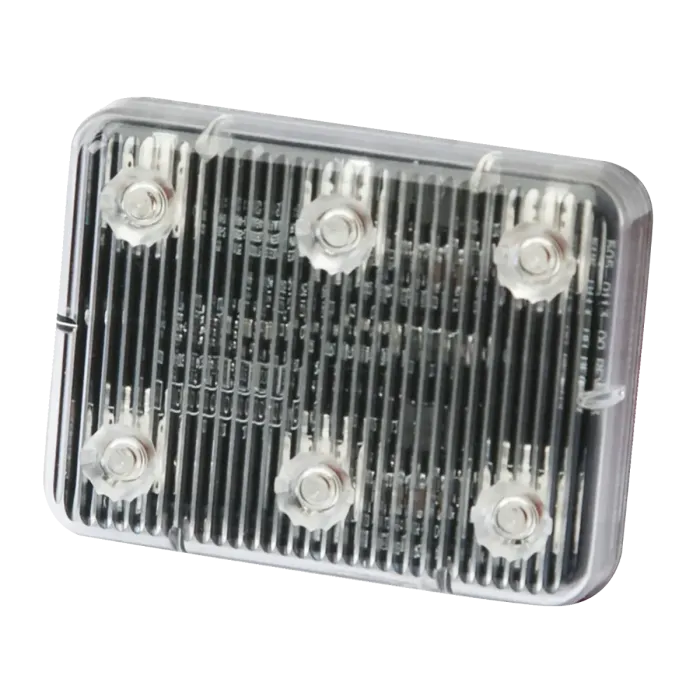

ECCO ED0004C — Stick-A-LED® Compact 6-LED Directional Warning Module (Self-Adhesive Mount, 12-24 V DC, Quad Flash, Clear / White)

The ECCO ED0004C is a versatile, compact directional LED module in the Stick-A-LED® series, engineered for quick installation and effective warning signal coverage. With six high-output LEDs, a peel-and-stick adhesive backing, and only one small hole needed for wiring, this module is ideal for retrofit or auxiliary directional warning applications on trucks, service vehicles, utility units, and more. It operates across a 12–24 V DC system and features a built-in quad-flash pattern, delivering crisp, regulated directional warning lighting in a minimal footprint.

Key Features & Specs (bulleted)

• Self-adhesive mounting with simple peel-and-stick backing — no hardware required (aside from wiring hole)
• Six-LED configuration in a 2.1″ compact form factor
• Operates on 12-24 V DC — compatible with mixed-voltage vehicle fleets
• Quad (4-flash) pattern output built in (no external controller needed)
• Clear / white lens for bright directional signaling
• Low current draw (approx ~0.75 A per TruckLightParts listing)
• Operating temperature range: –22 °F to +122 °F (–30 °C to +50 °C)

Applications & Benefits

• Ideal as an auxiliary directional accent on truck corners, body edges, or under cabinets
• Perfect for retrofit installs where space or mounting options are limited
• No external controllers required — simplifies wiring and reduces parts
• Low profile and self-adhesive mounting allow discreet, aesthetic installs
• Works on both 12 V and 24 V vehicles — reduces spare part inventory

Installation Tips

• Clean and prep mounting surface to ensure full adhesive contact.
• Drill a small wiring hole (typically ~½″) for route-in of the two wires.
• Peel protective film and press module firmly in place, holding for adhesive to bond.
• Route wires through grommets or sealed bulkheads to prevent chafing.
• Connect power (fused) and ground.
• Confirm the quad flash pattern works as expected before final sealing.
• Periodically inspect lens and adhesive over time in harsh environments.
