CONCEALED LED - HIDE-A-LED BULLET - 1in - (2 LED) - SELF-ADHESIVE - 12-24VDC - RED

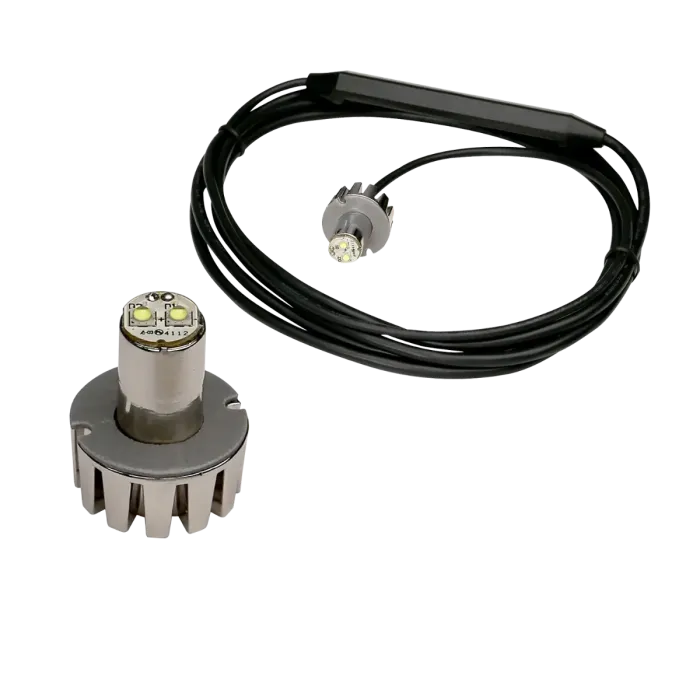

ECCO ED0010R Hide-A-LED™ Bullet – Concealed Red Directional LED (2 × 3W, 1″ Mount, 12–24 V, 16 Flash Patterns)

The ECCO ED0010R is a high-performance, low-profile Hide-A-LED Bullet designed to deliver a bold warning signal while staying discreet. With just a 1″ outer body diameter and a 3⁄4″ shaft, it fits easily into tight spaces and vehicle light housings. Featuring two 3-watt red LEDs, it offers strong directional output and includes 16 selectable flash patterns. Its housing supports self-adhesive or 2-bolt mounting, offers compatibility across 12–24 V systems, and can synchronize with other Hide-A-LED units.

Key Features & Specs

• Fits a 1″ mounting hole, with a 3⁄4″ shaft length for shallow installs
• Two 3W high-intensity red LEDs for strong warning output
• 16 flash patterns including single, double, triple, quad, deci, cycle all, etc.
• Synchronization capability — multiple units can flash in sync or alternately
• Works on 12–24 V DC systems (versatile for many vehicle platforms)
• Mounting options: self-adhesive or 2-bolt flange
• Compact “bullet” form: approx. 1″ diameter, minimal projection
• Clear / colorless when off — stays unobtrusive in unlit mode

Use the ED0010R when you need an effective red warning LED that blends into the vehicle until activated. Ideal for embedding in headlamps, tail lamps, marker housings, or other surfaces where conventional external pods aren’t desirable.
