SKU
ED3307SA
Manufactures SKU
ECCO ED3307SA
SIGNAL ARROW - SPLIT SAFETY ARROW - 8 LED PER END - 36 FLASH PATTERNS - IN-CAB CONTROLLER - 35ft CABLE - 12-24VDC - AMBE
$1,615.81
EA

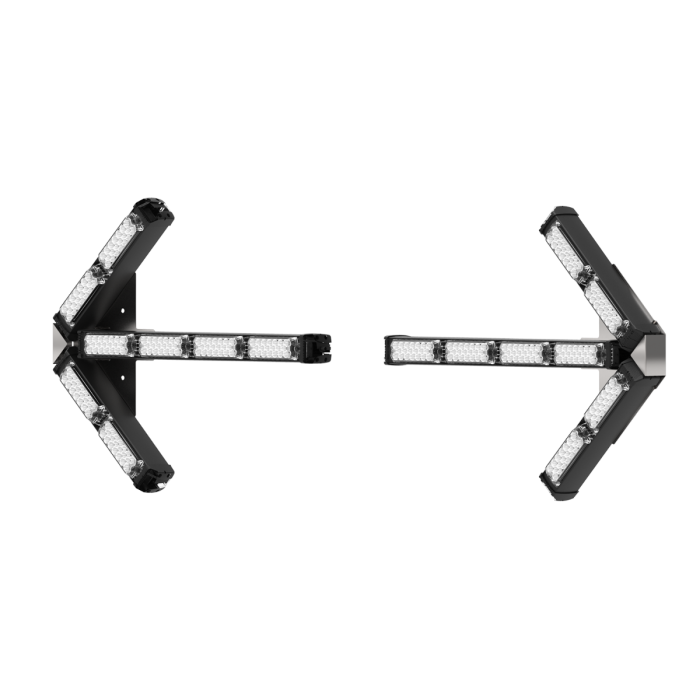

ECCO ED3307SA — LED Safety Director / Split Safety Arrow (Amber, 12-24 V, 35 Flash Patterns, SAE Class I)
Guide traffic with clarity using the ECCO ED3307SA, a high-output Split Safety Arrow / LED Safety Director engineered for reliable directional signaling. Designed for professional, safety-critical applications, the ED3307SA uses 16 high-powered 3811 LED modules encased in a rugged extruded aluminum housing with polycarbonate lens. It supports 35 selectable flash patterns via an in-cab controller and operates in the 12–24 V DC range, making it compatible across a variety of vehicle systems. With low amp draw, maintenance-free LED operation, and full SAE Class I certification, it’s a premium choice for utility, highway, emergency, and maintenance fleets.
Key Features & Specifications
Guide traffic with clarity using the ECCO ED3307SA, a high-output Split Safety Arrow / LED Safety Director engineered for reliable directional signaling. Designed for professional, safety-critical applications, the ED3307SA uses 16 high-powered 3811 LED modules encased in a rugged extruded aluminum housing with polycarbonate lens. It supports 35 selectable flash patterns via an in-cab controller and operates in the 12–24 V DC range, making it compatible across a variety of vehicle systems. With low amp draw, maintenance-free LED operation, and full SAE Class I certification, it’s a premium choice for utility, highway, emergency, and maintenance fleets.
Key Features & Specifications
- Split-arrow directional configuration (left, right, center-out, wig-wag modes)
- 35 Flash patterns selectable through in-cab controller (steady, alternation, arrow layouts)
- Voltage range: 12–24 V DC for wide vehicle compatibility
- Current draw: ~2.8 A (typical) under full operation
- Housing: extruded aluminum body with polycarbonate lens — durable for outdoor exposure
- LED modules: 16 × high-intensity 3811 type LEDs for bold output
- Dimensions: ~28″ length, ~5″ height, ~0.5″ depth (approx as per listings)
- Cable length: 18′ (standard) wiring pigtail included
- Approvals: SAE J595 Class I, CE, R10, RoHS compliance
- Maintenance free: LED design ensures long life and minimal upkeep
- Warranty: 5-year coverage typical for ECCO Safety Director series
- Ideal for highway maintenance, public works, and utility fleets directing traffic
- Can replace older strobe or incandescent arrow boards with modern LED technology
- Compatible with mixed-voltage fleets (12–24 V)
- Built for rugged environments — vibration, moisture, temperature extremes
- Low power draw helps preserve vehicle battery life
- Mount where arrow visibility is unobstructed to drivers and traffic.
- Use proper sealing and grommets when routing wiring through panels.
- Fuse the incoming power close to battery or source.
- Ground the unit to a clean, corrosion-free chassis point for stable performance.
- Test all arrow modes and flash patterns before finalizing mount.
- Periodically clean lens and inspect wiring under heavy-use conditions.
Number of Flash Patterns
35
Voltage
12-24V DC
Standards Met
SAE Class I, CE, UKCA, R10, RoHS
Shipping Weight (lbs)
27.000000
Total Height
6
Total Width
6
