DIRECTIONAL - 3 LED - SURFACE MOUNT - 12-24VDC - AMBER - DELPHI 4-PIN CON

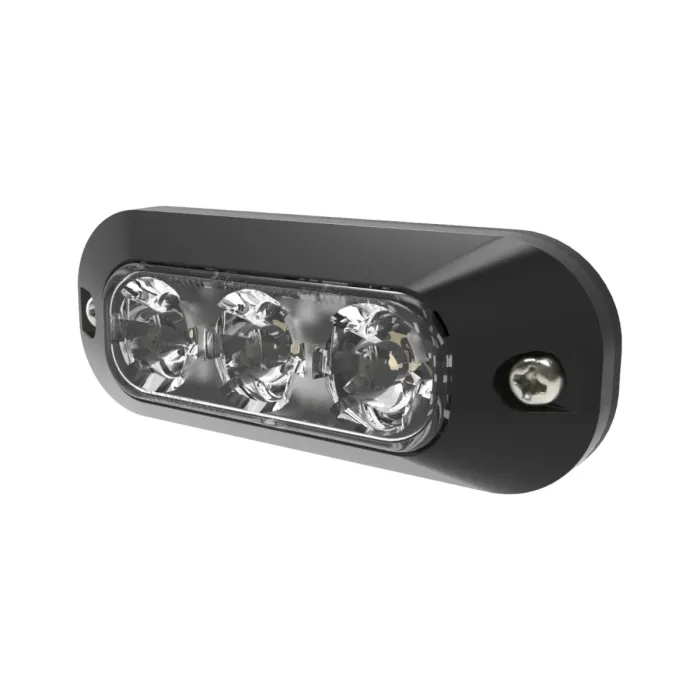

ECCO ED3703A-DEL4 — 3-LED Directional Surface-Mount Warning Light (Amber, 12-24 V, SAE Class I, Delphi 4-Pin Connector)

Add a compact yet powerful directional LED to your vehicle lighting with the ECCO ED3703A-DEL4. This 3-LED, surface-mount module is engineered for durability and performance, featuring high-intensity LEDs, synchronization capability, and SAE Class I certification. Designed to fit tight mounting locations, it offers dependable directional light output across 12 to 24 V systems—perfect for emergency, utility, and fleet applications.

Key Features & Specs

• Operates on 12-24 V DC systems for broad vehicle compatibility
• 3 high-intensity amber LEDs for directional warning output
• Delphi 4-pin connector, delivering reliable plug-and-play wiring
• Surface-mount design, ideal for flush mounting on body panels or housing surfaces
• Certified SAE Class I / directional performance for compliance in regulated environments
• Synchronization capability — can flash in unison with other ECCO directional modules
• Compact dimensions: approx. 1.4″ × 3.7″ × 0.6″
• Rugged, weather-resistant polycarbonate lens and sealed housing for long life
• 5-year warranty from ECCO covering performance and defects

Why Choose the ED3703A-DEL4?

• Fits into constrained mounting spaces where larger modules won’t fit
• Maintains high output with minimal footprint
• Delphi 4-pin connector simplifies installation and replacement
• Synchronizes with other directional lights for coordinated effects
• SAE Class I rating makes it suitable for regulatory use

Typical Applications

• Directional / warning lighting on service trucks, utility vehicles, maintenance fleets
• Retrofit into body panels, step wells, side covers, or low-profile mounts
• Integrating with ECCO directional arrays for visual consistency
• Use where smaller modules are desired without sacrificing performance

Installation Tips

• Choose a flat mounting surface; clean and prep before install.
• Route wiring through grommets or protective sleeves to avoid abrasion.
• Use appropriate wire gauge and fuse protection near the power source.
• Ensure solid chassis grounding to reduce flicker or interference.
• Program synchronization prior to final mount to ease alignment.
• Inspect lens condition and mounting hardware periodically in heavy-duty use.
