DIRECTIONAL -3 LED - SURFACE MOUNT - 12-24VDC - WHITE

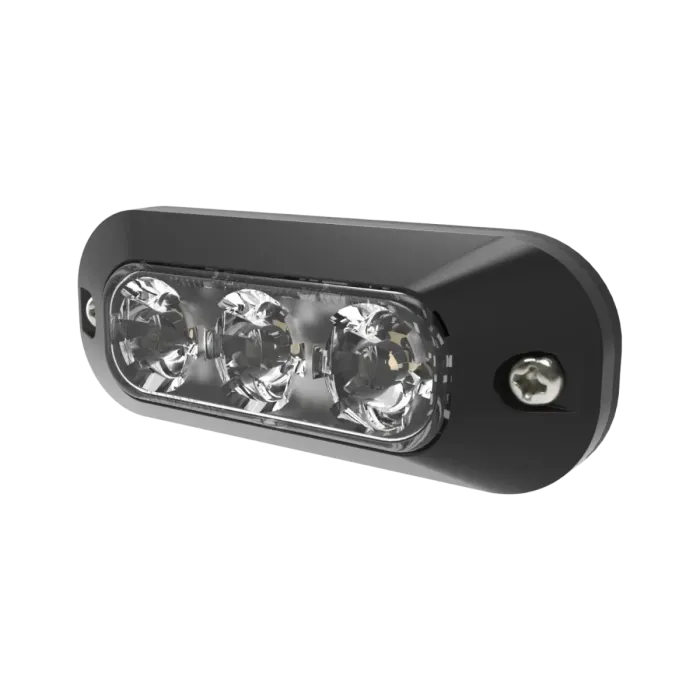

ECCO ED3703C 3-LED White Directional Warning Light | Clear Lens, Compact Surface Mount, SAE Class I

Maximize vehicle safety in a minimal footprint with the ECCO ED3703C Compact Directional LED Light. This ultra-discreet, low-profile warning light is built with 3 high-intensity White LEDs behind a Clear polycarbonate lens, offering brilliant illumination and exceptional visibility for emergency, utility, construction, and fleet vehicles.

Part of the popular 3700 Series, the ED3703C is engineered for versatility. Its tiny size (approx. 3.7" L x 1.4" H) allows for Surface Mount installation in tight or confined spaces such as bumpers, grilles, side mirrors, and compartments where larger lights won't fit. With 21 selectable flash patterns, including a steady-burn option, you can easily configure the light output to meet your specific application needs.

Rated SAE Class I for primary warning use, this light is designed for reliability. It features a rugged, waterproof (IP67) housing and a highly efficient design that operates on both 12-24 VDC systems with a low current draw of just 0.4 Amps. The ED3703C is also synchronizable with other compatible ECCO warning lights for a unified, vehicle-wide safety system.

Key Features & Specifications:

• Part Number: ED3703C (3700 Series)
• Light Type: Single-Color Directional LED Warning Light
• LED Color: White
• Lens Color: Clear
• LED Count: 3 High-Intensity LEDs
• Mounting: Permanent Surface Mount (Bolt-on)
• Flash Patterns: 21 Selectable Patterns (including steady-burn)
• Voltage: 12-24 VDC
• Current Draw: 0.4 Amps Max (Low-Amp Draw)
• Dimensions: Approx. 3.7" L x 1.4" H x 0.6" D
• Approval: SAE J595 Class I, R65, CA Title 13, IP67
• Warranty: 5-Year Limited Warranty
