DIRECTIONAL -4 LED - SURFACE MOUNT - SPLIT COLOR -12-24VDC - AMBER/WHITE

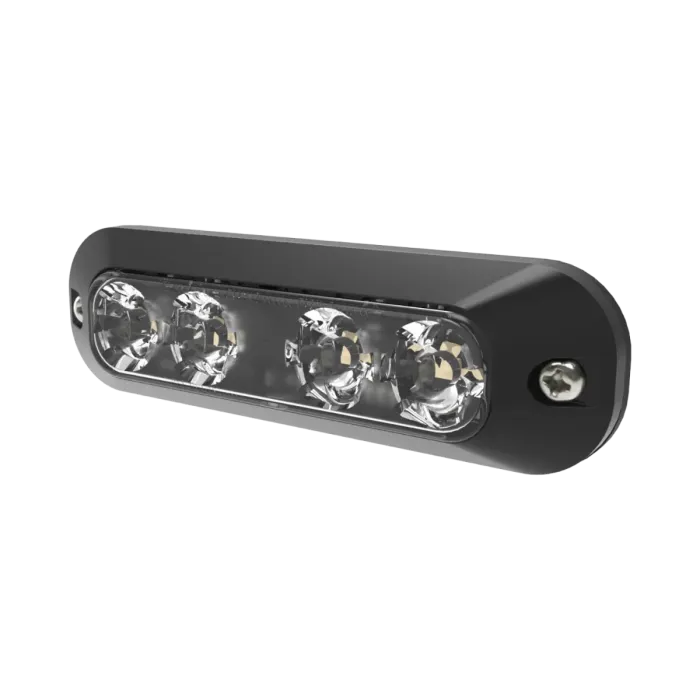

ECCO ED3704AC Split-Color Directional LED Light (Amber/White) – 4-LED, SAE Class I

Maximize vehicle visibility and safety with the versatile ECCO ED3704AC Directional LED Warning Light. This high-intensity unit features a split-color configuration combining essential Amber warning lights with powerful White illumination, making it perfect for utility, construction, tow trucks, and public works vehicles that require both signaling and auxiliary lighting.

Part of the compact ED3700 Series, the 4-LED surface mount is ultra-slim, measuring only 0.6" deep, allowing for discreet and flexible installation in tight vehicle spaces like grilles or running boards. It delivers exceptional off-axis output and is certified SAE Class I for superior performance. The light features 22 selectable flash patterns and synchronization capability to create a customized and high-impact warning system.

Engineered for durability, the ED3704AC has a robust, waterproof housing with an IP67/IP69K rating, ensuring long, maintenance-free life in extreme temperatures and environments.

Features & Specifications:

• Part Number: ED3704AC
• LED Count: 4 High-Intensity LEDs
• Color: Split-Color (Amber/White)
• Mounting: Surface Mount (4.7" Length x 1.4" Height x 0.6" Depth)
• Voltage: 12-24 VDC
• Approvals: SAE Class I, CA T13, ECE R65, IP67/IP69K (Waterproof)
• Flash Patterns: 22 (Synchronizable, Dimmable, Steady Burn Modes)
• Current Draw: 0.7 Amps Max @ 12.8 VDC
• Warranty: 5-Year Limited Warranty
