DIRECTIONAL -6 LED - SURFACE MOUNT -12-24VDC - AMBER

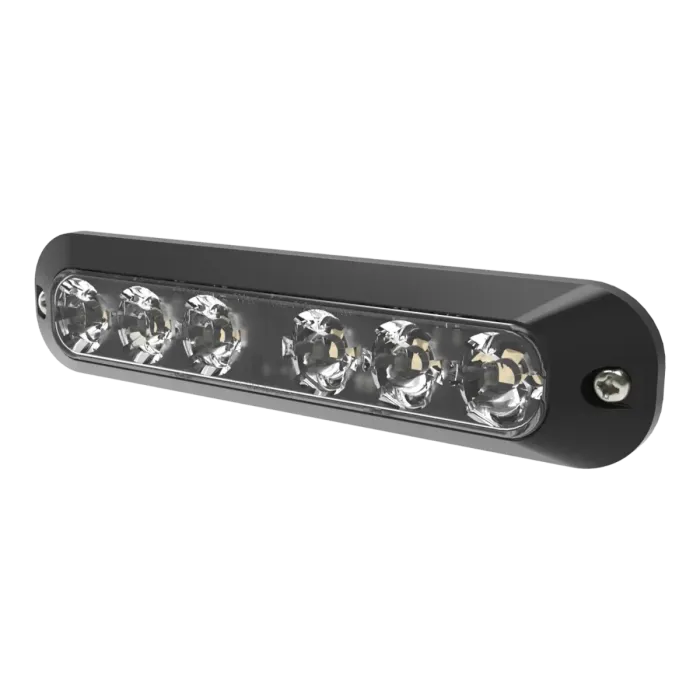

ECCO ED3705A 3700 Series Directional LED Light | 6-LED, Amber, SAE Class I

Maximize your vehicle's safety profile with the ECCO ED3705A directional warning light. Part of the compact and versatile 3700 Series, this high-intensity, surface-mount LED is engineered for superior visibility on any work truck, tow vehicle, or commercial fleet.

The ED3705A is equipped with 6 powerful Amber LEDs behind a sleek, Clear lens, offering a commanding warning signal that meets SAE Class I and CA Title 13 standards for maximum output. With an ultra-low profile design (approx. 6.2" L x 1.4" H x 0.6" D), this light fits discreetly into confined mounting locations such as grilles, bumpers, and side mirrors.

Users can choose from up to 30 selectable flash patterns and easily synchronize the light with other compatible ECCO units for a coordinated warning display. Built for the harshest conditions, the unit features a durable polycarbonate lens and an IP67/IP69K waterproof rating, ensuring long-life, zero-maintenance operation. The ED3705A is permanently mounted via a simple bolt-on installation (hardware included) and runs efficiently on 12-24 VDC systems.

Key Features & Specifications:

• Part Number: ED3705A (3700 Series)
• Light Type: Directional LED Warning Light
• LED Color: Amber (Light is Amber, but lens is Clear)
• LED Count: 6 High-Intensity LEDs
• Mounting: Surface Mount (Bolt-on hardware and gasket included)
• Flash Patterns: Up to 30 Selectable Patterns
• Voltage: 12-24 VDC
• Current Draw: 0.9 Amps Max
• Synchronization: Capable with other ECCO units
• Dimensions: Approx. 6.2" L x 1.4" H x 0.6" D
• Approval: SAE Class I, CA T13, R65, IP67/IP69K
• Warranty: 5-Year Limited Warranty
