SKU
ED3705AC
Manufactures SKU
ECCO ED3705AC
DIRECTIONAL -6 LED - SURFACE MOUNT - SPLIT COLOR -12-24VDC - AMBER/WHITE
$88.98
EA

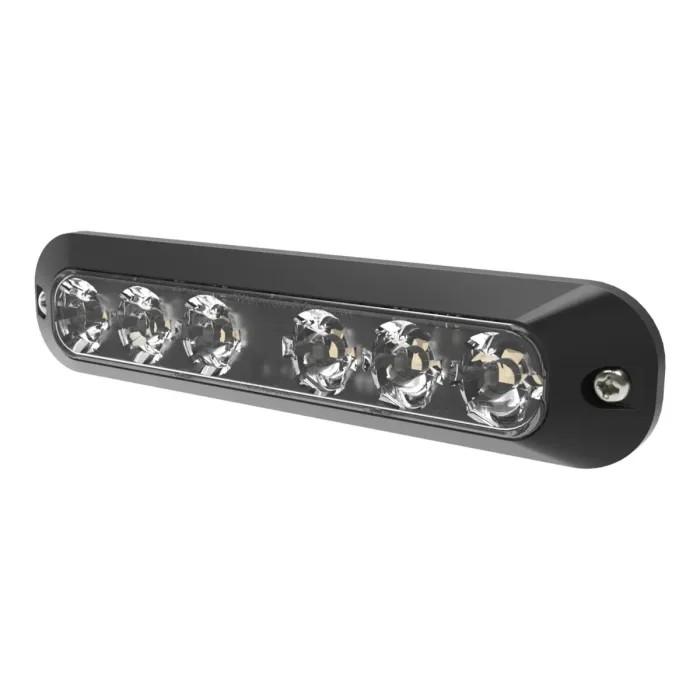

ECCO ED3705AC Split-Color Directional LED Light (Amber/White) – 6-LED, Ultra-Slim, SAE Class I
Achieve superior vehicle warning and scene illumination with the ECCO ED3705AC Directional LED Warning Light. This professional-grade unit features a versatile split-color Amber/White configuration, combining high-impact warning signals (Amber) with essential flood or utility lighting (White) from a single, low-profile device. It is the perfect compact solution for maximizing safety on tow trucks, utility vehicles, municipal trucks, and construction equipment.
As a member of the dependable ED3700 Series, the ED3705AC utilizes 6 high-intensity LEDs in an ultra-low-profile surface mount design (measuring approximately 6.2" L x 1.4" H x 0.6" D), ensuring discreet installation in tight spaces. The light is certified SAE Class I for maximum brightness and features 22 selectable flash patterns (including a steady-burn mode for the White section) and synchronization capability to easily integrate with other lights.
Engineered for extreme performance, the ED3705AC boasts a robust, waterproof housing that meets IP67/IP69K standards, protecting it from dust, water submersion, and high-pressure spray. Built for zero maintenance and backed by ECCO’s limited 5-year warranty.
Features & Specifications:
Achieve superior vehicle warning and scene illumination with the ECCO ED3705AC Directional LED Warning Light. This professional-grade unit features a versatile split-color Amber/White configuration, combining high-impact warning signals (Amber) with essential flood or utility lighting (White) from a single, low-profile device. It is the perfect compact solution for maximizing safety on tow trucks, utility vehicles, municipal trucks, and construction equipment.
As a member of the dependable ED3700 Series, the ED3705AC utilizes 6 high-intensity LEDs in an ultra-low-profile surface mount design (measuring approximately 6.2" L x 1.4" H x 0.6" D), ensuring discreet installation in tight spaces. The light is certified SAE Class I for maximum brightness and features 22 selectable flash patterns (including a steady-burn mode for the White section) and synchronization capability to easily integrate with other lights.
Engineered for extreme performance, the ED3705AC boasts a robust, waterproof housing that meets IP67/IP69K standards, protecting it from dust, water submersion, and high-pressure spray. Built for zero maintenance and backed by ECCO’s limited 5-year warranty.
Features & Specifications:
- Part Number: ED3705AC
- LED Count: 6 High-Intensity LEDs
- Color: Split-Color (Amber/Clear or Amber/White)
- Mounting: Surface Mount (Ultra-Slim; Approx. 6.2" L x 1.4" H x 0.6" D)
- Voltage: 12-24 VDC
- Approvals: SAE Class I, CA T13, ECE R65, IP67/IP69K (Waterproof)
- Flash Patterns: 22 (Synchronizable, Dimmable, Steady Burn Modes)
- Current Draw: 0.9 Amps Max @ 12.8 VDC
- Warranty: 5-Year Limited Warranty
Shipping Weight (lbs)
0.500000
Total Height
2
Total Width
7
