SKU
ED3705B
Manufactures SKU
ECCO ED3705B
DIRECTIONAL -6 LED - SURFACE MOUNT -12-24VDC - BLUE
$88.98
EA

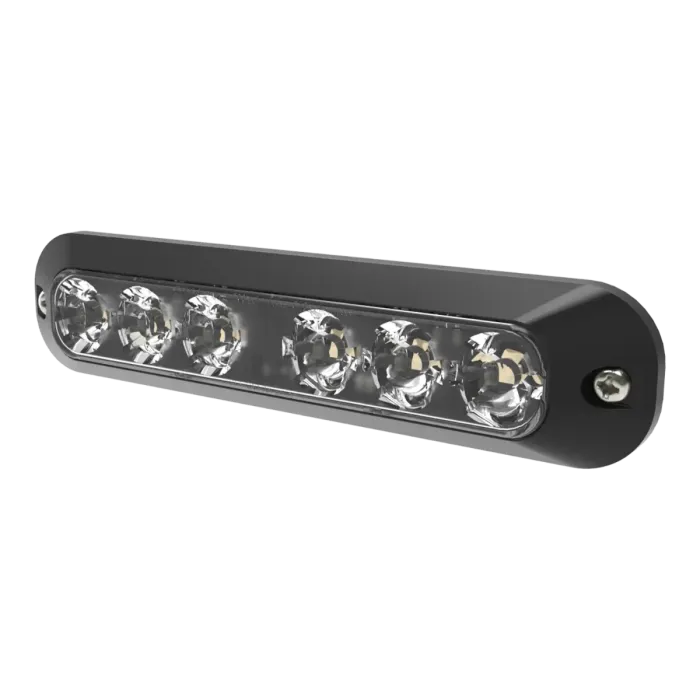

ECCO ED3705B Single-Color Directional LED Light (Blue) – 6-LED, SAE Class I Strobe for Emergency/Police Vehicles
Maximize your vehicle’s warning visibility with the ultra-slim ECCO ED3705B Single-Color Blue Directional LED Light. This powerful light head delivers a high-intensity, concentrated Blue warning beam, making it an ideal, discreet lighting solution for police cars, patrol trucks, and other official emergency response vehicles where Blue lighting is authorized.
Part of the reliable, compact ED3700 Series, the ED3705B contains 6 high-intensity LEDs and is designed for surface mount applications (approximate dimensions: 6.2" L x 1.4" H x 0.6" D). It achieves SAE Class I approval for maximum flash intensity. The unit features up to 30 selectable flash patterns (including synchronization capability), allowing for highly visible and coordinated warning signals.
Constructed to withstand harsh conditions, the ED3705B has a durable polycarbonate lens and a housing rated IP67/IP69K, providing superior protection against water, dust, and vibration. It operates on a 12-24 VDC system, requires zero maintenance, and is backed by ECCO’s limited 5-year warranty. Choose the ED3705B for powerful, reliable, and discreet emergency lighting.
Features & Specifications:
Maximize your vehicle’s warning visibility with the ultra-slim ECCO ED3705B Single-Color Blue Directional LED Light. This powerful light head delivers a high-intensity, concentrated Blue warning beam, making it an ideal, discreet lighting solution for police cars, patrol trucks, and other official emergency response vehicles where Blue lighting is authorized.
Part of the reliable, compact ED3700 Series, the ED3705B contains 6 high-intensity LEDs and is designed for surface mount applications (approximate dimensions: 6.2" L x 1.4" H x 0.6" D). It achieves SAE Class I approval for maximum flash intensity. The unit features up to 30 selectable flash patterns (including synchronization capability), allowing for highly visible and coordinated warning signals.
Constructed to withstand harsh conditions, the ED3705B has a durable polycarbonate lens and a housing rated IP67/IP69K, providing superior protection against water, dust, and vibration. It operates on a 12-24 VDC system, requires zero maintenance, and is backed by ECCO’s limited 5-year warranty. Choose the ED3705B for powerful, reliable, and discreet emergency lighting.
Features & Specifications:
- Part Number: ED3705B
- LED Count: 6 High-Intensity LEDs
- Color: Single-Color Blue
- Mounting: Surface Mount (Ultra-Low Profile; Approx. 6.2" L x 1.4" H x 0.6" D)
- Voltage: 12-24 VDC
- Approvals: SAE Class I, ECE R65, IP67/IP69K (Waterproof)
- Flash Patterns: Up to 30 (Synchronizable)
- Current Draw: 0.86 - 0.9 Amps Max @ 12.8 VDC
- Warranty: 5-Year Limited Warranty
Shipping Weight (lbs)
0.500000
Total Height
2
Total Width
7
