DIRECTIONAL -12 LED - SURFACE MOUNT -DUAL COLOR -12-24VDC - RED/BLUE

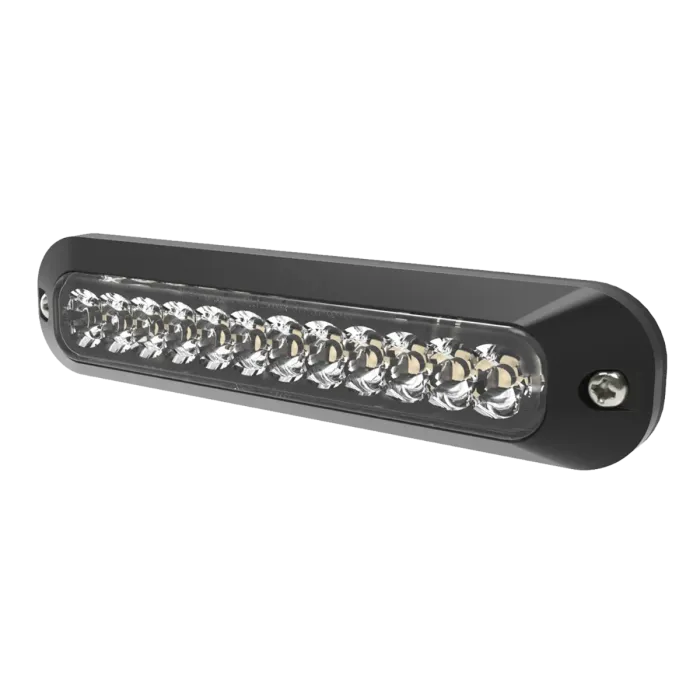

ECCO ED3755RB Dual-Color Directional LED — Surface Mount (Red / Blue, 12 LED, 12-24V, 70 Flash Modes, Class I)

Add powerful, flexible directional lighting to your vehicle with the ECCO ED3755RB, a robust surface-mount LED module offering dual-color output (red/blue). Built to ECCO’s high standards, this 12-LED fixture runs on 12-24 V DC and supports up to 70 selectable flash patterns for maximum configurability. With a sleek, sealed housing and Class I compliance, the ED3755RB is ideal for emergency, utility, or fleet applications where both performance and appearance matter.

Key Features & Specifications

• Dual-Color Output: Red / Blue LEDs in one unit for flexible use cases
• LED Count: 12 high-intensity LEDs
• Mount Style: Surface mount (flush to body or panel)
• Voltage Compatibility: Works across 12-24 V DC systems
• Flash Patterns: Up to 70 selectable modes, ideal for directional or warning sequences
• Dimensions: ~ 6.2″ wide × 1.4″ high × 0.6″ deep (approx.)
• Compliance: Approved as Class I directional LED
• Sealed, Durable Design: Waterproof, vibration-resistant body suitable for harsh environments

Why Choose the ED3755RB?

• Enables a single LED module to perform in multiple color modes, reducing hardware complexity
• Offers 70 flash patterns for custom signaling and directional logic
• Surface-mount design makes installation easier on flat vehicle areas
• Sealed, rugged construction ensures reliable performance under road stress
• Ideal for emergency, fleet, utility, and service vehicle applications

Suggested Applications

• Rear directional or warning light on emergency vehicles
• Side or curb-side directionals on utility / service trucks
• Retrofits or upgrades where dual-color is advantageous (red + blue)
• Situations demanding a low-profile, high-output signaling light
• Use in synchronized lighting systems with multiple ED/Directional modules

Installation & Best Practices

• Choose a flat mounting surface free of obstructions so lens output is unobstructed.
• Seal mounting holes and wiring passage using grommets or waterproof sealant to maintain environmental integrity.
• Use properly rated fuse and wire gauge for power feed, especially over longer runs.
• Ensure a clean ground connection to prevent flicker or performance issues.
• Program flash modes and test red & blue output before final mounting.
• In multi-unit systems, follow ECCO’s wiring guide for synchronization to avoid timing drift.
• Periodically inspect the lens, wiring, and mounting hardware for wear or damage.
