SKU
ED3766AR
Manufactures SKU
ECCO ED3766AR
DIRECTIONAL LED - DUAL-COLOR - SURFACE MOUNT - 12-24VDC - 12 FLASH PATTERNS - AMBER/RED
$131.76
EA

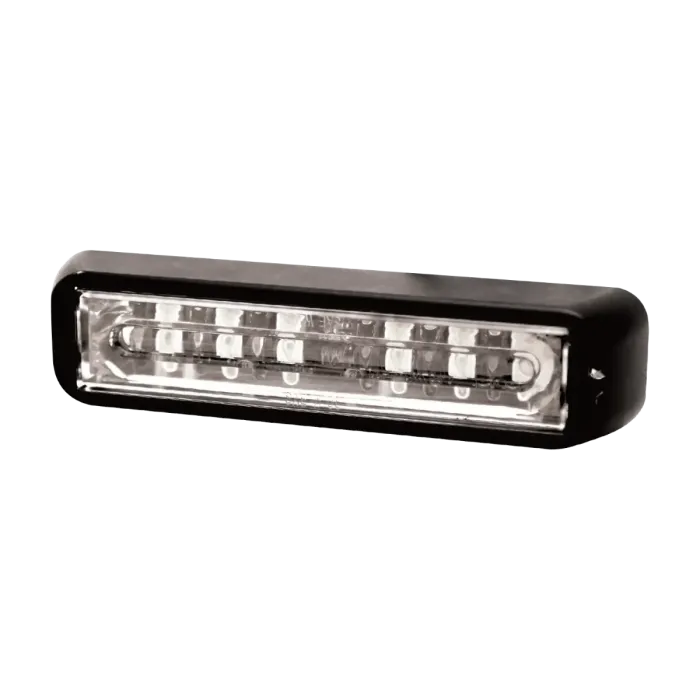

ECCO ED3766AR Dual-Color Surface Mount Directional LED Light | Amber/Red, SAE Class I
Enhance the safety profile of your work truck or emergency vehicle with the ECCO ED3766AR Dual-Color Directional LED Light. This ultra-versatile light head provides the powerful combination of high-intensity Amber and Red warning colors in a single, compact, and low-amp draw unit. It is an ideal solution for applications where a dual-color signal is required, offering flexibility to flash each color individually or alternate between the two.
The ED3766AR features 12 high-intensity LEDs (6 of each color) and offers up to 69 selectable flash patterns, providing outstanding visibility and attention-getting capability. Its sleek, durable design uses a robust Aluminum housing and Polycarbonate lens with fully encapsulated electronics for superior protection against the elements, earning it an IP67 ingress protection rating.
Designed for simple, permanent installation, this light utilizes a 2-bolt Surface Mount system, making it easy to affix to any flat surface on your bumper, grille, hood, or side mirror. It operates reliably across a 12-24 VDC system with a minimal current draw of just 0.8 Amps and is certified SAE Class I for primary warning use.
Key Features & Specifications:
Enhance the safety profile of your work truck or emergency vehicle with the ECCO ED3766AR Dual-Color Directional LED Light. This ultra-versatile light head provides the powerful combination of high-intensity Amber and Red warning colors in a single, compact, and low-amp draw unit. It is an ideal solution for applications where a dual-color signal is required, offering flexibility to flash each color individually or alternate between the two.
The ED3766AR features 12 high-intensity LEDs (6 of each color) and offers up to 69 selectable flash patterns, providing outstanding visibility and attention-getting capability. Its sleek, durable design uses a robust Aluminum housing and Polycarbonate lens with fully encapsulated electronics for superior protection against the elements, earning it an IP67 ingress protection rating.
Designed for simple, permanent installation, this light utilizes a 2-bolt Surface Mount system, making it easy to affix to any flat surface on your bumper, grille, hood, or side mirror. It operates reliably across a 12-24 VDC system with a minimal current draw of just 0.8 Amps and is certified SAE Class I for primary warning use.
Key Features & Specifications:
- Part Number: ED3766AR (3766 Series)
- Light Type: Dual-Color Directional LED Warning Light
- Color Output: Amber / Red
- LED Count: 12 High-Intensity LEDs (6 per color)
- Mounting: 2-Bolt Surface Mount
- Flash Patterns: Up to 69 Selectable Flash Patterns
- Voltage: 12-24 VDC
- Current Draw: 0.8 Amps Max
- Dimensions: Approx. 6.4" L x 1.5" H x 1.2" D
- Approval: SAE J595 Class I, R65, CA Title 13, IP67
- Warranty: 5-Year Limited Warranty
Shipping Weight (lbs)
0.480000
Total Height
2
Total Width
7
