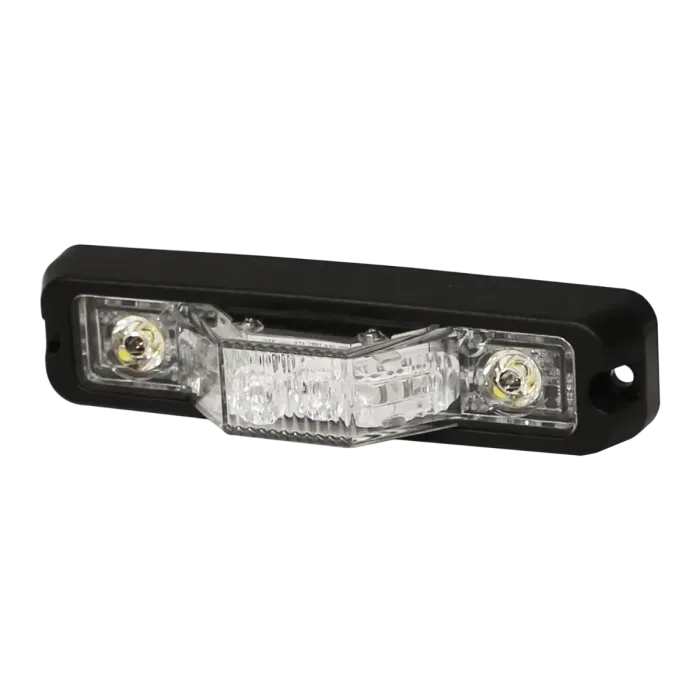

ECCO ED3777AR Dual-Color 180° Directional LED Light | Amber/Red, Multi-Mount, SAE Class I

Be the first to review this product

$180.43 EA

Achieve superior 180-degree warning coverage and work-area illumination with the ECCO ED3777AR Directional LED Light. This powerful light head is engineered for maximum visibility at intersections and off-angle approaches, featuring a Dual-Color Amber/Red output perfect for fire apparatus, law enforcement, tow trucks, and utility vehicles.

The low-profile, narrow design of the ED3777AR (part of the ED3777 Series) offers exceptional versatility with four mounting options included in the box:

Surface Mount
Edge Mount
Self-Adhesive Mount
Permanent Mount

More than just a warning light, the ED3777AR is designed with integrated work-light and puddle-light combinations to illuminate the immediate work area around the vehicle. It features 6 LEDs per color (for a total of 12 or more high-intensity LEDs) and offers up to 69 selectable flash patterns, with full synchronization capability with other ED3777 units.

This robust light is rated SAE Class I for primary warning applications, operates on 12-24 VDC, and is fully weatherproof with an IP67/IP69K rating, ensuring reliability in the harshest conditions.

Product Details

Product Spec

Request More Information

Reviews

Features & Benefits

Light Type: Dual-Color Directional LED Light (180° Coverage)
Color Output: Amber / Red
LED Count: 6 LEDs per color (12+ total)
Unique Feature: Integrated Work Light / Puddle Light Combination
Mounting: Multi-Mount (Surface, Edge, Permanent, Self-Adhesive hardware included)
Flash Patterns: Up to 69 Selectable Flash Patterns
Voltage: 12-24 VDC
Current Draw: Approx. 1.4 - 3.6 Amps Max (Configuration Dependant)
Dimensions (L x H x D): Approx. 5.1" x 1.2" x 1.3" (Low Profile)
Approval: SAE J595 Class I, CA Title 13, R65, IP67
Warranty: 5-Year Limited Warranty (Check specific listing for final warranty term)
