DIRECTIONAL LED - MULTI-MOUNT - 12-24VDC - 180DEGREE - WHITE

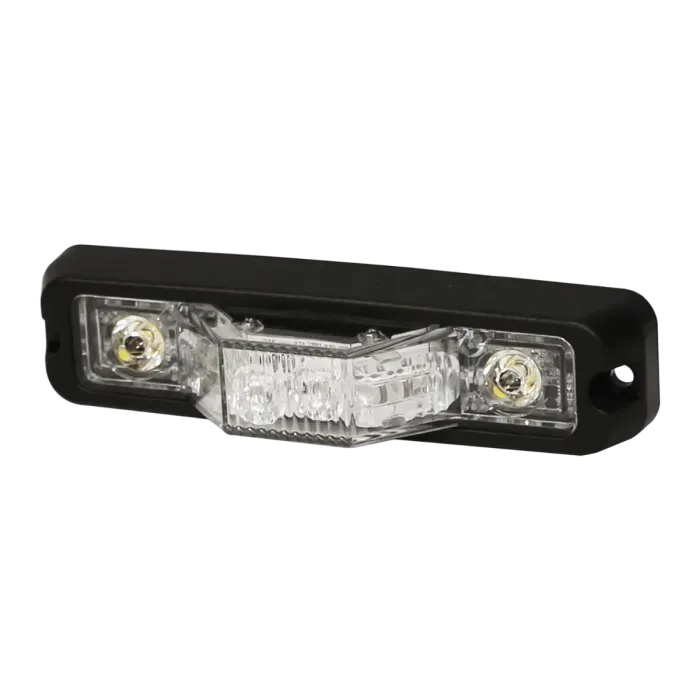

ECCO ED3777W | 180° White Directional LED Light with Puddle/Work Light Function (SAE Class I Multi-Mount)

Maximize visibility and safety at intersections and job sites with the ECCO ED3777W Directional LED Light. This highly versatile, low-profile warning light is engineered to deliver a powerful 180-degree warning output from its six white LEDs, ensuring superior off-axis visibility for vehicles approaching from the side.

Ideal for fire, police, EMS, utility, and tow trucks, the ED3777W features an integrated work light and puddle light combination. This dual-functionality provides essential illumination for personnel working around the vehicle in low-light conditions, complementing the high-intensity warning flash.

The ED3777W is part of the ED3777 Series and offers a unique multi-mount design with four included mounting options (surface, edge, self-adhesive, and permanent bolt-on). Its narrow, robust construction (5.1" L x 1.3" D) and durable aluminum housing/polycarbonate lens are IP67/IP69K certified for complete weather protection. It includes 29 selectable flash patterns and synchronization capability for a coordinated warning system.

Key Features & Specifications:

• Part Number: ED3777W (ED3777 Series)
• Light Type: 180° Directional Warning LED, Multi-Function
• LED Color: White
• LED Count: 6 High-Intensity Warning LEDs
• Output: 180-Degree Illumination, Work Light/Puddle Light Combination
• Mounting: Multi-Mount (Surface, Edge, Self-Adhesive, Permanent Bolt-on)
• Dimensions: 5.1" L x 1.2" H x 1.3" D (approx.)
• Flash Patterns: 29 Selectable Patterns
• Voltage: 12-24 VDC Wide Range
• Current Draw: 1.3 Amps (Max)
• Certification: SAE J595 Class I, CE, R10, IP67, IP69K
• Warranty: 5-Year Limited Warranty
