DIRECTIONAL -16 LED -DOUBLE STACK - SURFACE MOUNT -DUAL COLOR -12-24 VOLT - RED/AMBER

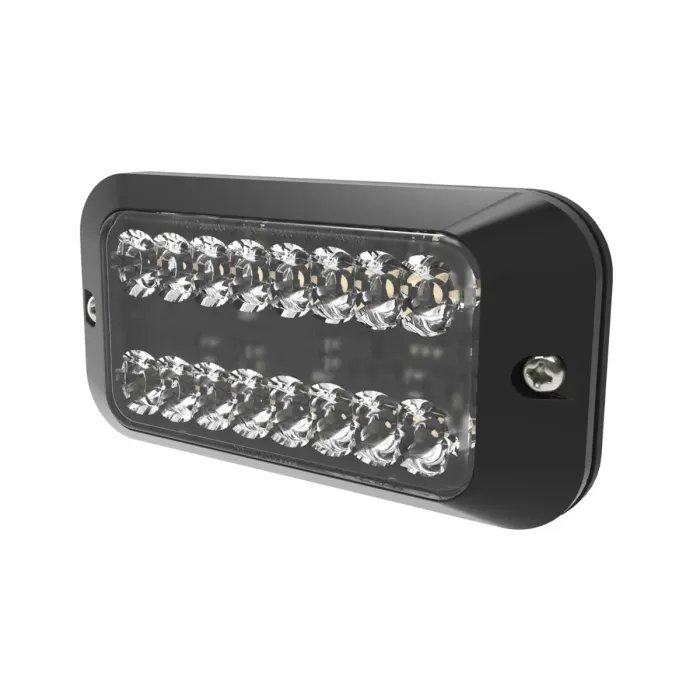

ECCO ED3789RA — 16-LED Dual-Color Directional LED (Red / Amber, Surface Mount, 12-24 V, 70 Flash Patterns, Class I)

Elevate your warning lighting configuration with the ECCO ED3789RA, a versatile dual-color directional LED module designed for surface mounting. This model integrates 16 high-output LEDs capable of both red and amber output in one housing, making it ideal for alternating or combined warning modes. With operation over 12–24 V DC, support for 70 selectable flash patterns, and SAE Class I directional certification, the ED3789RA delivers professional performance in a compact, rugged package.

Key Features & Specifications

• Dual-color output: Red / Amber — configurable within a single unit
• Surface-mount design for flush, low-profile installation
• 16 high-intensity LEDs (double stack) for strong directional lighting
• Supports up to 70 flash patterns, including alternation, sequencing, steady, and more
• Voltage compatibility: 12–24 V DC to match vehicle systems
• Certified as SAE / Class I directional LED module
• Sealed housing, vibration- and weather-resistant construction for durability
• Compact footprint suited for tight mounting locations

Why Choose ED3789RA?

• The dual-color design offers flexibility: red for standard directional warning, amber for caution mode
• Surface-mount makes integration on flat body panels or compartments straightforward
• The high flash pattern count supports customization for many signaling schemes
• Certification as Class I gives confidence for lawful use
• Built to endure road vibration, moisture, and temperature extremes

Typical Applications

• Emergency and service vehicles needing flexible red/amber directional output
• Utility, municipal, or fleet vehicles requiring surface-mount directional modules
• Retrofit or new installations where minimal protrusion is desired
• Coordinated lighting setups using synchronized directional LED modules

Installation Tips & Best Practices

• Select a flat, stable surface to mount flush; ensure no obstructions to output.
• Use proper sealant or grommets to protect wiring and prevent moisture ingress.
• Route power and ground wiring safely away from sharp edges or heat sources.
• Use correct gauge wiring and fuse protection to maintain performance.
• Program your desired flash pattern before final mounting.
• When installing multiple units, follow ECCO’s recommended wiring scheme for synchronization.
• Periodically inspect lens and mounting hardware in heavy-vibration environments.
