DIRECTIONAL -16 LED -DOUBLE STACK - SURFACE MOUNT -DUAL COLOR -12-24 VOLT - RED/WHITE

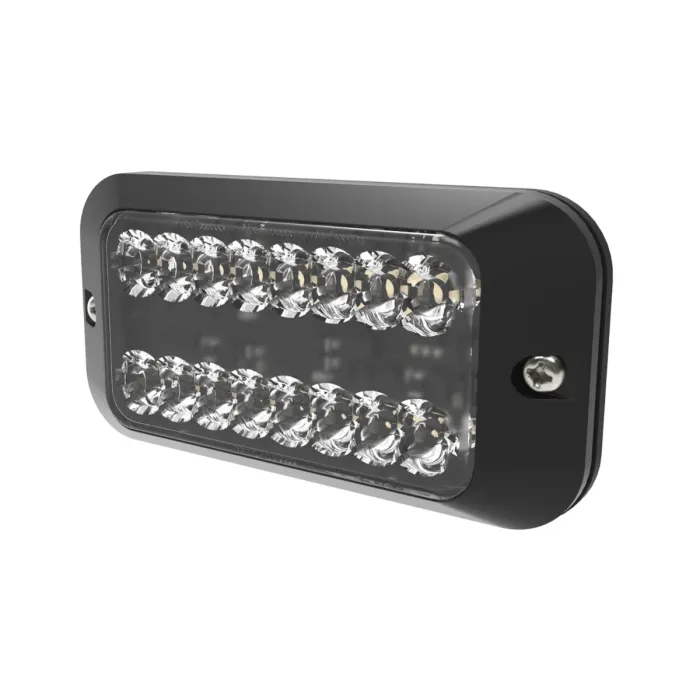

ECCO ED3789RC — 16-LED Dual-Color Surface-Mount Directional LED (Red / White, 12-24 V, 70 Flash Patterns, Class I)

The ECCO ED3789RC is a rugged, high-performance directional LED module that delivers dual-color (red / white) output in a single compact surface-mount housing. Featuring 16 LEDs in a double-stacked configuration, this unit supports 70 selectable flash patterns and operates over a wide 12–24 V DC range. Its sealed, weather-resistant enclosure is certified SAE Class I, making it ideal for fleet, emergency, utility, and service vehicle installations.

Key Features & Specifications

• Dual-color (Red / White) directional output — switch between warning modes in one module
• 16 high-output LEDs in a double-stack layout for strong visibility
• Surface-mount design for flush installation on body panels, roofs, or compartments
• Wide operating voltage: 12-24 V DC for compatibility across various vehicle platforms
• Up to 70 selectable flash patterns, including steady, chase, alternation, and more
• Certified SAE Class I directional LED for regulatory compliance
• Compact dimensions: approx. 4.7″ (W) × 2.4″ (H) × 0.6″ (D)
• Sealed, durable housing designed for vibration and environmental stress

Applications & Advantages

• Ideal for emergency vehicles that require both red and white directional lighting
• Upfit fleets and service trucks where flush mounting is needed without bulky pods
• Supports synchronized lighting systems across multiple modules
• Dual-color functionality reduces the need for separate fixtures
• Designed for low maintenance and high durability in harsh conditions

Installation Tips

• Choose a flat, unobstructed surface for surface mount.
• Use proper sealing (gaskets or RTV) where the assembly contacts the body to prevent moisture ingress.
• Route power and ground cables through grommets or conduits to avoid abrasion.
• Ground to a solid chassis point to minimize flicker or interference.
• Program your desired flash pattern prior to final mounting for easier alignment.
• When installing multiple units, follow ECCO’s wiring scheme to maintain synchronization.
• Regularly inspect lenses, wiring, and mounting hardware during service intervals.
