DIRECTIONAL LED - DUAL COLOR - FLUSH MOUNT - 69 FLASH PATTERNS - 12-24VDC - AMBER/GREEN

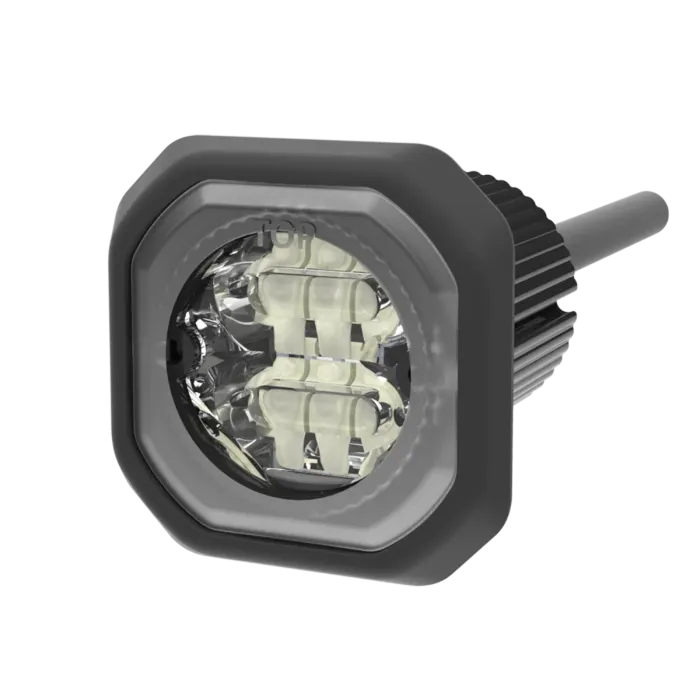

ECCO ED9040AG — 1.3″ Hide-A-LED® Concealed Dual-Color Directional LED (Amber / Green, Flush or 1" Hole Mount, 12-24 V, 69 Flash Patterns)

The ECCO ED9040AG is a low-profile concealed directional LED designed for stealthy, high-impact warning performance in tight spaces. This Hide-A-LED® module delivers dual-color amber / green output from a compact 1.3″ × 1.3″ housing. It supports 69 flash patterns, is rated for 12–24 V DC systems, and offers SAE Class I directional compliance. With mounting options of flush or 1" hole, synchronized capability, and extremely low current draw (<2 A), it’s ideal for installations in headlight or taillight housings, grilles, or behind lenses where visible warning is needed without a bulky external module.

Key Features & Specifications

• Dual-Color Output: Amber / Green color modes in one module
• Mounting Options: Flush mount or 1″ hole mount design
• Flash Patterns: 69 selectable patterns, including alternation, split, steady, etc.
• Voltage Compatibility: Operates on 12–24 V DC
• Compact Size: Approx. 1.3″ W × 1.3″ H × 1.4″ D
• Current Draw: Less than 2 A under nominal conditions
• Directional Compliance: SAE Class I, CA Title 13, R10, R65, IP67, IP69K certified
• Sync Capability: Units can be synchronized via sync wiring to flash in concert

Why Choose ED9040AG?

• Provides professional directional warning in a concealed, discreet form
• Dual-color amber/green allows flexible signaling without external modules
• Small form factor fits where larger bars won’t, yet still offers robust warning output
• Wide pattern choices and sync capability make it part of a scalable lighting system
• Mounting flexibility (flush or hole) makes it easy to integrate into vehicle bodies
• Certified for directional use per SAE Class I and other standards

Typical Applications

• Concealed mounting inside headlamp or taillamp housing for minimal external visibility
• Grille or bumper integration where flush appearance is preferred
• Side or edge-of-body directional lighting for emergency, utility, or fleet vehicles
• Supplemental directional modules working with main lightbars

Installation Tips

• Determine whether you will use flush or 1″ hole mount; drill a proper size if needed.
• Use the included gasket or proper sealing to prevent moisture ingress.
• Route wiring with grommets or sealed bulkheads to avoid chafing.
• Fuse the supply close to the power source (recommend ~3 A slow-blow per ECCO instructions)
• Set the desired flash mode before installing to simplify configuration.
• If synchronizing multiple units, wire sync lines according to ECCO’s guide to maintain phases.
• Periodically inspect lens clarity, mounting integrity, and wiring in maintenance schedules.
