DIRECTIONAL LED - DUAL COLOR - FLUSH MOUNT - 69 FLASH PATTERNS - 12-24VDC - AMBER/WHITE

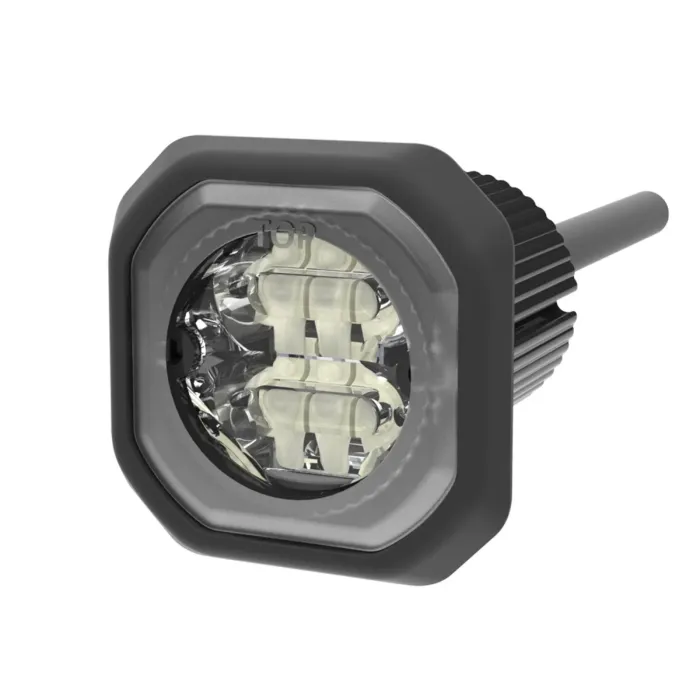

ECCO ED9040AW — Hide-A-LED® Concealed Dual-Color Directional LED (Amber / White, Flush or 1″ Hole Mount, 12-24 V, 69 Flash Patterns, SAE Class I)

The ECCO ED9040AW is a slim, hideaway directional LED light engineered for installations where a low-profile, discreet look is essential. This module combines amber and white outputs in one compact housing, offering 69 selectable flash patterns, sync capability, and SAE Class I directional performance. With the flexibility of flush or 1″ hole mount installation and compatibility across 12–24 V DC systems, this Hide-A-LED® fits seamlessly into bumpers, body panels, grilles or decorative trim. Backed by rugged construction and sealed design, it’s ideal for fleet, emergency, utility, and service vehicles.

Key Features & Specifications

• Dual-Color Output: Amber / White modes from a single LED head
• Slim Design: ~1.3″ W × 1.3″ H × 1.4″ D
• Mounting Options: Flush mount or 1″ hole installation for versatile vehicle placements
• Flash / Modes: 69 flash patterns in dual-color mode, plus sync capabilities with other ECCO modules
• Voltage Range: 12 to 24 V DC input for multi-voltage fleet compatibility
• Directional Certification: SAE Class I directional / warning output
• Environmental & Approvals: IP67 / IP69K sealed, R10, R65, CA Title 13 compliance
• Steady-Burn Override: Allows white-mode “work light” steady burn operation
• Temperature Range: Rated to operate from –30 °C to +50 °C (–22 °F to +122 °F)

Why Choose ED9040AW?

• Combines amber warning and white work/directional lighting in one discreet light
• Minimal protrusion — ideal for OEM-style integration or concealed installs
• Wide pattern flexibility and sync feature allow coordinated lighting schemes
• Compatible with 12/24 V systems — suitable for mixed-volt fleets
• Certified directional output (SAE Class I) gives confidence in regulated applications
• Rugged sealed design ensures long life in harsh vehicles and weather

Common Applications

• Concealed installation behind grille or trim panels
• Bumper or body panel mounting where low profile is critical
• Side-edge or corner directional supplement lighting
• Retrofit of older warning lights with a modern, discrete LED module
• Integration with multi-module synchronized directional systems

Installation Tips

• Choose whether a flush or 1″ hole mount suits your vehicle body panel.
• Use the mounting gasket or proper sealing to prevent water ingress.
• Route wiring through grommets or conduit to avoid chafing or damage.
• Fuse the positive lead near the battery (ECCO recommends a 3A slow-blow fuse for directionals)Ground firmly to vehicle chassis to maintain stable operation.
• Configure and test your flash pattern and sync setting before final mounting.
• For synchronized operation, wire the sync lines per ECCO’s instructions to maintain phase alignment.
