DIRECTIONAL LED - SINGLE COLOR - FLUSH MOUNT - 29 FLASH PATTERNS - 12-24VDC - BLUE

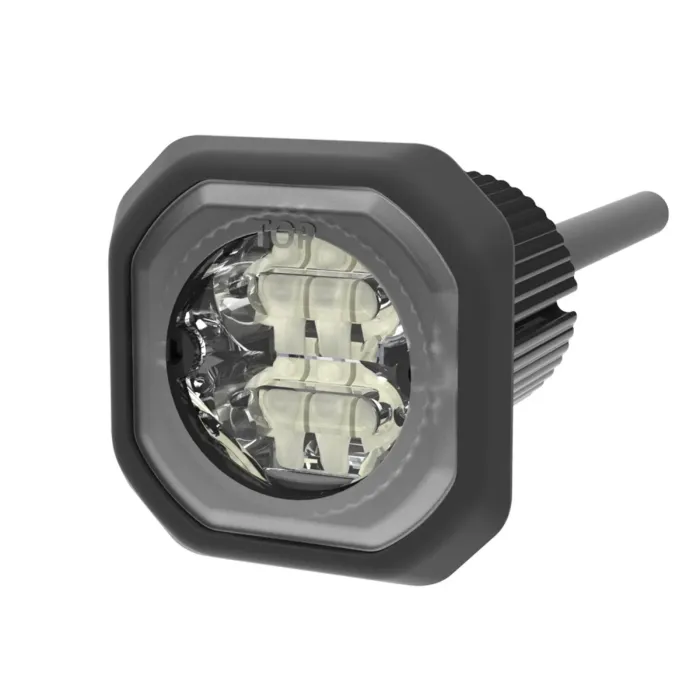

ECCO ED9040B — Flush-Mount Concealed Directional LED (Blue, Hide-A-LED® Series, 29 Flash Patterns, 12-24 V DC, SAE Class I Rated)

The ECCO ED9040B is a compact, flush-mount directional LED module tailored for installations where subtle warning lighting is needed. As part of ECCO’s Hide-A-LED® lineup, this unit provides blue directional output in a small 1.3″ × 1.3″ housing. It supports mounting options via flush or 1″ hole, offers 29 selectable flash patterns, operates across 12–24 V DC, and carries SAE Class I directional rating. The ED9040B is ideal for integrating into bumpers, body panels, grilles, or hidden locations while maintaining regulatory-compliant performance. According to the ED9040 series overview: the series supports 1" hole or flush mounts, single- or dual-color variants, 29 flash patterns, 12–24V ratings, 1.2A draw, and a 5-year warranty.

Key Features & Specifications

• Color / Output: Blue single-color directional warning LED
• Mounting Methods: Flush or 1″ hole mount configurations available
• Flash Patterns: 29 selectable modes
• Voltage Compatibility: 12-24 V DC operation (fleet-ready)
• Current Draw (Max): ~1.2 A (typical spec for ED9040 series)
• Certification & Rating: SAE Class I directional, meets ECCO Hide-A-LED series criteria
• Size & Form: ~1.3″ × 1.3″ housing for minimal protrusion
• Warranty: Backed by ECCO’s standard 5-year warranty

Why Choose the ED9040B?

• Provides directional blue warning in a sleek concealed form
• Flush/1″ mounting gives flexibility for discreet installations
• Regulatory output (SAE Class I) ensures compliance
• 29 flash modes enable flexible signaling behavior
• Compact size with minimal external footprint
• Compatible across 12–24V systems — ideal for mixed fleets

Typical Applications

• Embedded into bumpers, grilles, or panels for covert directional lighting
• Side-edge or corner directionals complementing main warning arrays
• Retrofit projects where full light bars are impractical
• Fleet, service, or emergency vehicles needing blue directional accent

Installation Tips

• Choose flush or 1″ hole mount based on your panel design.
• Use proper gaskets or sealants to prevent moisture penetration.
• Route wiring through grommets or bulkheads to avoid chafing.
• Use appropriate fuse protection near the power source.
• Ground firmly to a clean metal chassis point for stable operation.
• Test the 29 flash patterns before final mounting.
• If syncing multiple modules, wire sync lines per ECCO’s guidelines for synchronized flashing.
