DIRECTIONAL LED - SINGLE COLOR - FLUSH MOUNT - 29 FLASH PATTERNS - 12-24VDC - GREEN

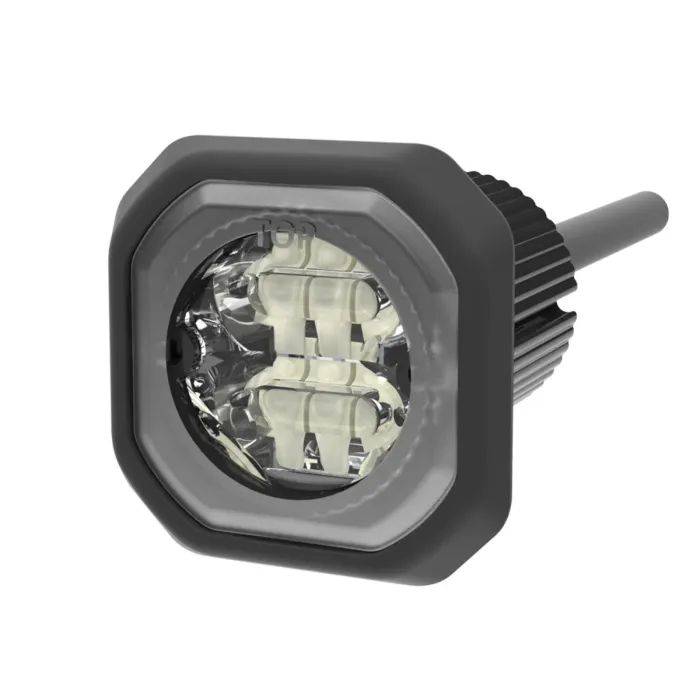

ECCO ED9040G — Flush-Mount Single-Color Directional LED (Green, 29 Flash Patterns, 12-24 V DC, Hide-A-LED® Series)

Illuminate with precision and subtlety using the ECCO ED9040G, a low-profile flush-mount directional LED engineered for high-impact warning in a sleek, compact footprint. As a member of ECCO’s Hide-A-LED® line, the ED9040G delivers single-color green directional output with 29 selectable flash patterns and compatibility across 12–24 V DC systems. Certified to SAE Class I directional standards, it supports discreet mounting behind bumpers, panels, or trim surfaces without compromising on regulated performance. According to TruckPro, it’s described as a Directional LED, Single Color, Flush Mount, 29 flash patterns, 12–24 V DC, Green.

Key Features & Specifications

• Single-Color Output: Green directional light for warning or signaling
• Flash Modes: 29 built-in flash patterns for flexible signaling
• Voltage Compatibility: Operates on 12–24 V DC systems
• Mounting Method: Flush mount design (Hide-A-LED style)
• Certification & Ratings: SAE Class I directional, IP67, R10, meets ECCO’s Hide-A-LED standards
• Dimensions: ~1.5″ × 1.5″ × 6.25″ per spec listing
• Warranty: Standard ECCO 5-year warranty coverage

Why Choose the ED9040G?

• Delivers green directional warning in a sleek, nearly invisible housing
• Compact flush-mount style blends seamlessly into vehicle styling
• 29 flash patterns offer versatile signaling options
• Works across mixed-voltage fleets — 12 V to 24 V compatibility
• Meets directional lighting standards (SAE Class I) while offering discreet design

Use Cases / Applications

• Embedded behind bumpers, panels, or trim for clean directional warning
• Side-edge or corner orientation for traffic-control or auxiliary lighting
• Retrofit applications where bulkier directional modules are not feasible
• Supplemental directional lighting in coordinated multi-module systems

Installation Tips

• Choose a flush mounting location with clear line-of-sight for the LED lens.
• Use gaskets or sealant to prevent moisture infiltration at the mounting surface.
• Route wiring through grommets or sealed bulkheads to avoid abrasion.
• Fuse the power line near the source and use proper wire gauge.
• Ground to a clean, bare-metal chassis point for reliable operation.
• After mounting loosely, cycle through the 29 patterns to confirm desired mode before final tightening.
• In multi-module setups, wire sync lines per ECCO’s recommended diagram to preserve flash alignment.
