DIRECTIONAL LED - DUAL COLOR - FLUSH MOUNT - 69 FLASH PATTERNS - 12-24VDC - RED/AMBER

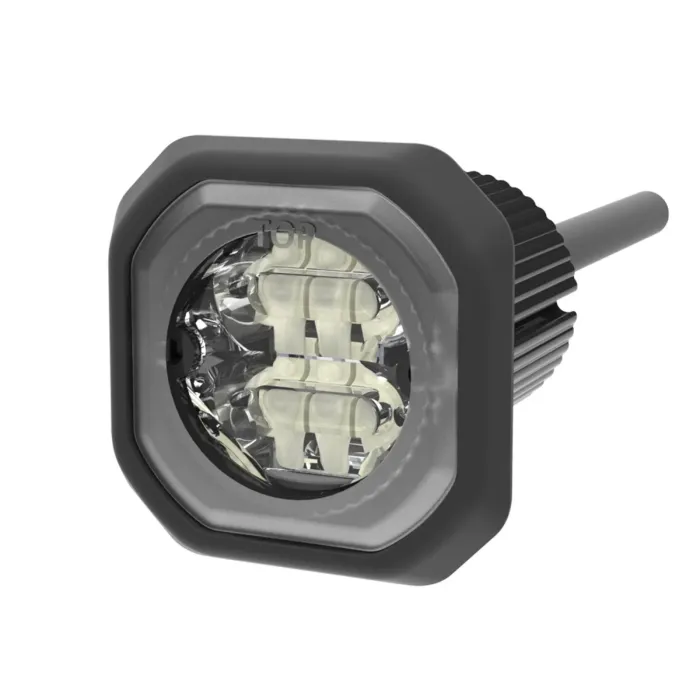

ECCO ED9040RA — Flush-Mount Dual-Color Directional LED (Red / Amber, Hide-A-LED® Series, 69 Flash Patterns, 12–24 V DC, SAE Class I)

The ECCO ED9040RA is a sleek, nearly invisible directional LED module engineered for premium warning light capability in a minimalist package. This module offers dual-color output (red and amber) in a compact 1.3″ × 1.3″ housing that mounts flush or via a 1″ hole. It supports 69 flash patterns, is compatible with 12–24 V DC vehicle systems, and meets SAE Class I directional certification standards. Designed for discreet installs behind bumpers, trim, grilles, or panels, the ED9040RA delivers strong directional warning performance without the bulk of external lightheads. According to NAPA’s spec sheet, it draws up to 1.2 A, offers 69 flash patterns, supports red/amber modes, and carries a 5-year warranty.

Key Features & Specifications

• Dual-Color Output: Red / Amber directional capabilities in one LED module
• Flash Modes: 69 selectable patterns including alternating, split, steady modes
• Voltage Range: 12-24 V DC input for broad compatibility
• Max Current: Up to 1.2 A at 12 V DC (nominal spec for ED9040 series)
• Mounting: Flush mount or 1″ hole for seamless integration behind surfaces
• Size & Form Factor: 1.3″ W × 1.3″ H × 1.4″ D (compact)
• Certifications / Ratings: SAE Class I directionals, CA Title 13 (T13), R10, R65, IP67 / IP69K rated for harsh environments
• Synchronization: Can be synchronized with other ECCO directional modules using sync wiring
• Warranty: 5-year limited warranty typical across the ED9040 series

Why Choose ED9040RA?

• Combines red and amber directional modes in one seamless module, reducing the need for multiple fixtures
• Flush design fits cleanly into bumpers, fascia, tail panels, or trim surfaces
• 69 flash patterns give you flexibility to match many application needs
• Works with both 12 V and 24 V systems — ideal for mixed fleets
• Sync support allows coordinated flashing across multiple units
• Certified directional output (SAE Class I) ensures reliable performance in regulated settings

Common Applications

• Fitted behind bumper corners, panel trim, or grille ambush spots
• Directional accent lighting for emergency, tow, or service vehicles
• Retrofit replacement for older directionals while retaining factory aesthetics
• Side / edge / perimeter lighting where external protrusions are not desired
• Coordinated directional lighting setups with multiple modules

Installation Best Practices

• Determine flush or 1″ hole mount based on the panel material and clearance behind.
• Use proper gaskets or sealing to prevent moisture ingress around the mounting cutout.
• Route wiring through grommets or sealed bulkheads to avoid abrasion and chafing.
• Use a 3 A slow-blow fuse (or per ECCO’s instructions) on the power lead near source.
• Ground properly to a clean chassis point to prevent flicker or electrical noise.
• Before final mounting, cycle through all 69 flash modes and verify red/amber switching.
• When synchronizing multiple modules, wire sync lines per ECCO’s sync instructions to align flash phases.
• Periodically inspect lens, mounting hardware, wiring condition, and seals during vehicle maintenance.
