DIRECTIONAL LED - DUAL COLOR - FLUSH MOUNT - 69 FLASH PATTERNS - 12-24VDC - RED/BLUE

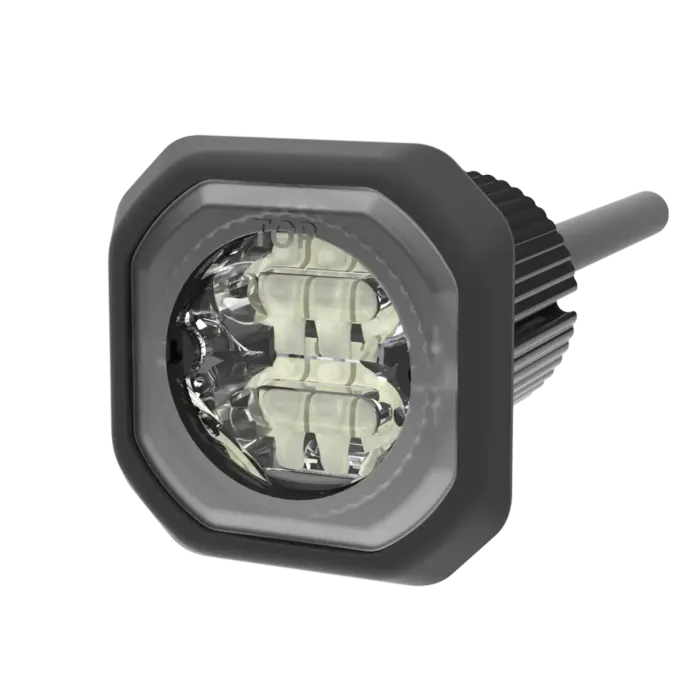

ECCO ED9040RB — Flush-Mount Dual-Color Directional LED (Red / Blue, 12-24 V, 69 Flash Patterns, Hide-A-LED® Series)

Enhance your vehicle’s warning lighting in a slim, discreet package with the ECCO ED9040RB. This Flush-Mount directional LED module supports dual-color output (red + blue), allowing you to switch between or combine colors for maximum visual impact. With 69 selectable flash patterns, synchronization capability, and compatibility across 12-24 V DC systems, the ED9040RB delivers robust directional performance with a minimal profile. Listed dimensions (~1.5″ × 1.5″ × 6.25″) and standard ratings further confirm its suitability for integration behind bumpers, body panels, or trim surfaces.

Key Features & Specifications

• Dual-color output: red & blue in a single LED module
• Flush-mount design for clean, low-profile installation
• 69 selectable flash patterns, offering flexible warning modes
• Operates on 12-24 V DC systems, making it suitable for mixed fleets
• Recommended current draw: up to ~1.2 A (typical spec for ED9040 series)
• Dimensions: approx. 1.5″ height × 1.5″ width × 6.25″ length
• Meets SAE Class I directional standards (as part of ECCO’s direct-light / directional line)
• Backed by a 5-year warranty (standard for ECCO models)

Why Choose the ED9040RB?

• Combines red and blue directional colors in one flush-mount module — reduces the need for multiple fixtures
• Clean flush install means less visual disruption, better integration with vehicle bodywork
• Full pattern control (69 modes) gives you flexibility in signaling and warning styles
• Compatible with both 12 V and 24 V systems, reducing stock complexity
• Designed to synchronize with other ECCO modules for coordinated flashing
• Robust design suitable for exterior vehicle conditions

Typical Applications

• Embedded in bumpers, trim, or fascia for directional warning output
• Side-edge or corner lighting on emergency vehicles, utility trucks, or fleets
• Retrofit projects where replacing bulky directional fixtures is desired
• Supplemental directional modules working with main lightbars

Installation Tips

• Select a flush mounting surface that allows the LED lens to project unobstructed.
• Use the included gasket and sealants to prevent water ingress around the mounting area.
• Route wiring through grommets or sealed bulkheads, avoiding sharp edges and heat zones.
• Place fuse close to the power source; use proper gauge wiring to handle ~1.2 A load.
• Ground to a clean chassis point to avoid flicker or interference.
• Before final mounting, cycle through all 69 patterns and test color switching.
• If combining multiple modules, wire the sync lines according to ECCO’s diagrams to maintain synchronized flashing.
• Regularly inspect the lens, mounting hardware, and wiring on maintenance checks.
