DIRECTIONAL LED - SINGLE COLOR - FLUSH MOUNT - 29 FLASH PATTERNS - 12-24VDC - WHITE

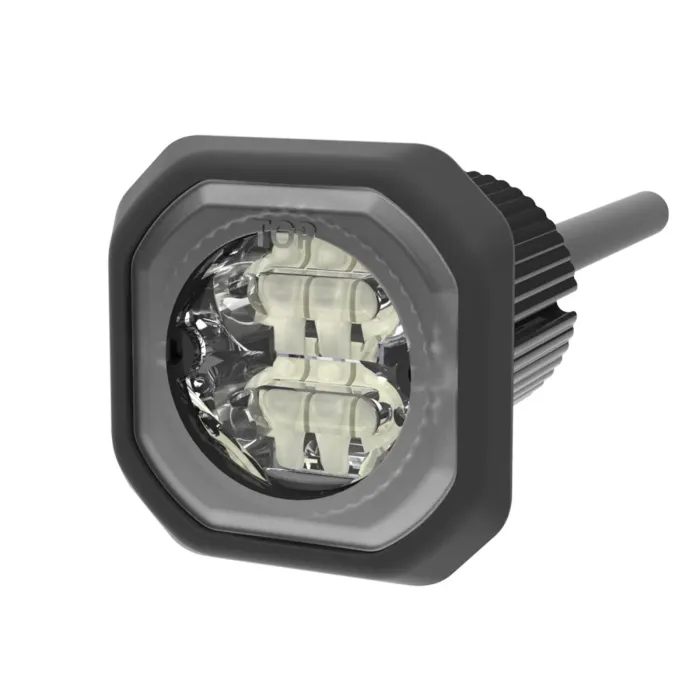

ECCO ED9040W — Flush-Mount White Hide-A-LED® Directional LED (29 Flash Patterns, 12–24 V DC, SAE Class I)

Bring crisp, clean directional lighting to your vehicle in a low-profile, concealed format with the ECCO ED9040W. Part of ECCO’s Hide-A-LED™ ED9040 series, this unit combines modern warning light performance with a minimalist footprint. It features:

• White single-color directional output ideal for perimeter or auxiliary lighting
• Flush-mount or 1″ hole installation for nearly invisible mounting
• Compatibility with 12–24 V DC vehicle systems
• 29 selectable flash patterns built into the module (no external controller needed)
• SAE Class I directional output rating for regulated use
• Slim dimensions: approx. 1.3″ × 1.3″ × 1.4″ housing
• Engineering supports synchronization with other ED9040 units for coordinated flash across multiple modules
• Operating temperature range: –22 °F to +122 °F (–30 °C to +50 °C)
• Max current: up to ~1.2 A at 12 V (nominal for ED9040 single-color models)

The ED9040 series concept is to embed all control electronics, flash modes, and dim/steady-burn features in the module itself—eliminating the need for a separate LED controller.

Why Choose the ED9040W?

• Delivers a clean, bright white directional output from a nearly invisible package
• Meets regulatory directional lighting requirements while preserving vehicle aesthetics
• Built-in pattern variety and synchronization make it flexible for fleet or emergency setups
• Dual-voltage compatibility simplifies parts inventory across 12V and 24V platforms
• Rugged, sealed construction ensures reliability in harsh environments

Typical Applications

• Embedded directional lighting in bumpers, body panels, or trim surfaces
• Side-edge or corner accent directional lighting for emergency, utility, or fleet vehicles
• Retrofit of existing directional styles with a modern, low-profile LED solution
• Supplemental directional modules working in sync with full lightbar systems

Installation Tips

• Choose a flush or 1″ hole cut depending on your mounting surface.
• Use gasket or proper sealing to prevent moisture ingress.
• Route wiring through grommets or sealed bulkheads to avoid sharp edges.
• Fuse the positive lead near the battery (ECCO recommends a 3 A slow-blow fuse for the module)
• Ground to a clean, bare-metal chassis point to reduce flicker or noise.
• Cycle through the 29 patterns on the blue wire (momentary grounding) before final fastening.
• If using multiple ED9040 units, tie sync (yellow) wires and phase them correctly for synchronized flashing.
• Inspect lens clarity, mounting, and wiring regularly—especially in high-use or salted-road environments.
