LED UTILITY BAR - 20in - SINGLE - COMBO - 12-24 VOLT - DEUTSCH CON

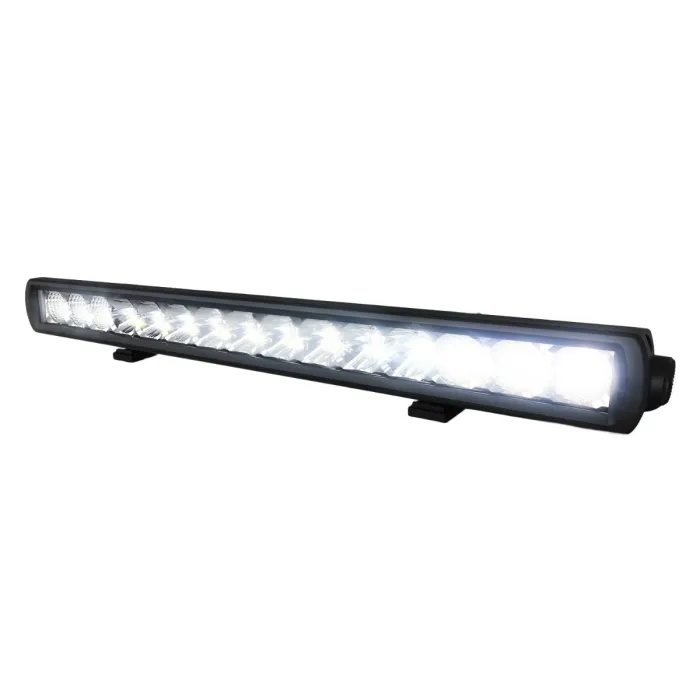

ECCO EW3120 | 20-Inch Single-Row LED Utility Light Bar (Combo Flood/Spot Beam, 2175 Lumens)

Illuminate your path and work area with the high-performance ECCO EW3120 Single-Row LED Utility Light Bar. This 20-inch light bar from the robust EW3100 Series is engineered to provide exceptional, bright white lighting for heavy-duty commercial vehicles, off-road equipment, and recreational applications.

The EW3120 features a powerful Combo Flood/Spot beam pattern, utilizing 15 high-quality 5-Watt LEDs to deliver a concentrated spot beam for long-distance visibility, while the wide-angle flood beam illuminates the immediate surrounding work area. With an output of 2,175 Raw Lumens, this light bar significantly extends your visibility laterally and forward.

Designed for the harshest environments, the unit features a rugged black aluminum heatsink housing for optimal thermal management and a UV hardcoated polycarbonate lens for maximum durability. Installation is simplified with a Deutsch DT connector included, and it offers flexible mounting via adjustable end or extrusion mounts. Operating on a versatile 12-24 VDC system with a low 1.8 Amp draw, the EW3120 guarantees long, maintenance-free life and carries an excellent IP67/IP69K rating for superior water and dust ingress protection.

Key Features & Specifications:

• Part Number: EW3120 (EW3100 Series)
• Light Type: Single-Row LED Utility Light Bar
• LED Count: 15 LEDs (5-Watt each)
• Lumen Output: 2,175 Raw Lumens
• Beam Pattern: Combination Flood / Spot
• Voltage: 12-24 VDC (Multi-voltage)
• Current Draw: 1.8 Amps
• Housing Color: Black
• Length: 20 inches
• Durability Rating: IP67, IP69K (High-pressure wash, dustproof)
• Connection: Deutsch DT04-2P Connector (Mates with Deutsch DT06-2S plug supplied)
• Features: Built-in vent to prevent fogging, adjustable mounting options.
• Warranty: 5-Year Limited Warranty
