TRAILER WIRING - 7-CONDUCTOR RECEPTACLE MAIN HARNESS

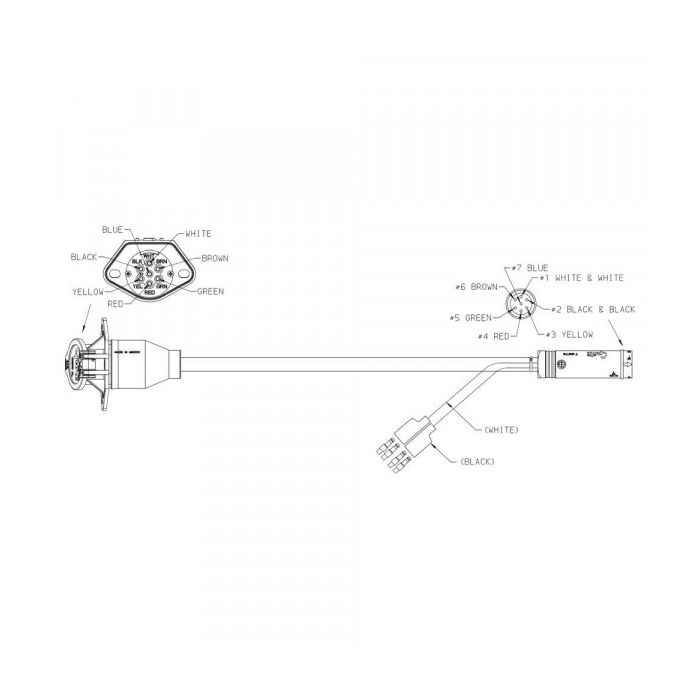

Grote 01-6608-E9 UBS™ 7-Conductor Main Harness – 24" with Drop

Ensure a secure, weather-tight electrical connection for your fleet with the Grote 01-6608-E9. As part of Grote’s renowned Ultra-Blue-Seal® (UBS) system, this main harness is designed to simplify trailer wiring while providing industry-leading protection against moisture, corrosion, and vibration.

This 2-foot (24") harness features a 7-conductor configuration with a dedicated drop segment, making it ideal for trailer setups requiring mid-point access or side-mounted components. The overmolded receptacle and solid-pin design (compatible with 87860) ensure a stable, two-hole mount installation that maintains consistent electrical contact even under heavy vibration.

Key Features:

• Ultra-Blue-Seal® Technology: Engineered to create a completely sealed system, preventing moisture wicking and corrosive damage.
• Overmolded Receptacle: Provides superior strain relief and a hermetic seal against road grime and salt.
• Solid-Pin Connectivity: Features a heavy-duty nose box plug with solid pins for maximum conductivity and mechanical strength.
• Flexible Integration: Includes a 23-inch wire length with a drop segment for versatile mounting and connection options.
• Durable GPT Wire: Constructed with high-quality GPT material and a multi-gauge configuration (1-10 GA, 6-12 GA) to handle diverse electrical loads.
• Easy Installation: Designed for a standard two-hole mount, ensuring a quick and secure fit to your trailer chassis.

Specifications:

• Part Number: 01-6608-E9
• Product Line: Ultra-Blue-Seal® (UBS)
• Length: 24" (2-foot)
• Wire Length: 23"
• Connector Side 1: Nose box plug (Solid-pin)
• Connector Side 2: UBS 7-Way Female / Double .180" Slim-Line Female Bullet
• Wire Gauge: 1-10 GA, 6-12 GA
• Warranty: 1-Year Grote Warranty
