TRAILER WIRING - 7-CONDUCTOR RECEPTACLE MAIN HARNESS

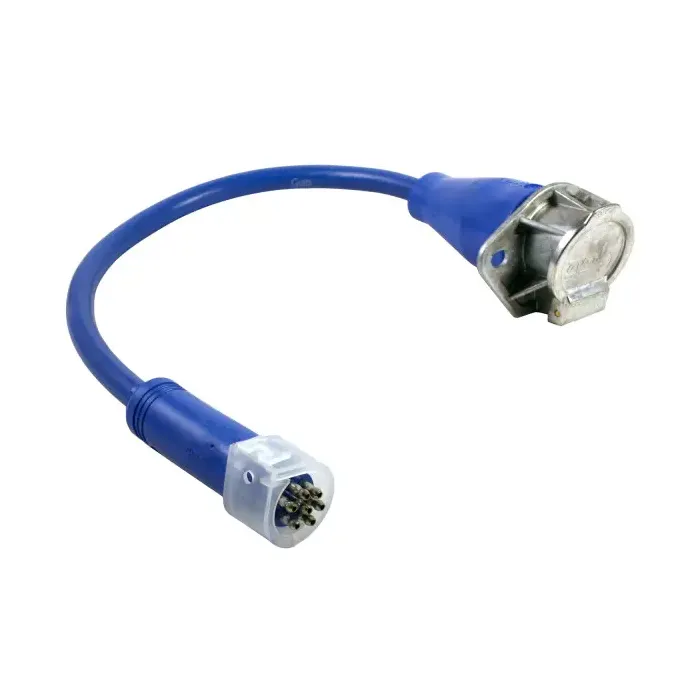

Grote 01-6608-F9 UBS™ 7-Conductor Main Harness – 24" Straight

The Grote 01-6608-F9 is a critical component of the Ultra-Blue-Seal® (UBS) modular wiring system, engineered to eliminate the most common cause of trailer electrical failure: moisture and corrosion. This 2-foot (24") main harness features an integrated 7-way receptacle and is designed for seamless integration into heavy-duty truck and trailer electrical systems.

Built for longevity, the 01-6608-F9 features an overmolded receptacle that creates a permanent, hermetic seal against road salt, grime, and pressure washing. The solid-pin design (compatible with Grote 87860) ensures superior mechanical strength and consistent electrical contact, preventing the flickering lights and power drops common with inferior split-pin connectors.

Key Features:

• Ultra-Blue-Seal® Protection: Part of Grote’s patented sealed system that prevents moisture wicking through the wires.
• Overmolded Receptacle: The housing is molded directly onto the cable to provide ultimate strain relief and a 100% weather-tight seal.
• Solid-Pin Configuration: Features a heavy-duty nose box plug with solid pins for maximum durability and uninterrupted power transfer.
• Rugged Construction: Built with high-quality GPT wire material designed to withstand extreme temperatures and vibration.
• Standard Mounting: Features a two-hole mount design for quick and secure installation on the trailer nose box.
• Multi-Gauge Wiring: Optimized wire gauges (1-10 GA and 6-12 GA) to handle the electrical demands of modern lighting and ABS systems.

Specifications:

• Part Number: 01-6608-F9
• Product Line: Ultra-Blue-Seal® (UBS)
• Harness Length: 24" (2-foot)
• Wire Length: 23"
• Connection Type: UBS 7-Way Male / Nose box plug (Solid-pin)
• Connector Side 1: Nose box plug (Solid-pin)
• Connector Side 2: UBS 7-Way Male
• Wire Material: GPT
• Number of Wires: 7
• Warranty: 1-Year Grote Warranty
