CLEARANCE/MARKER LAMP - RED - NARROW RAIL

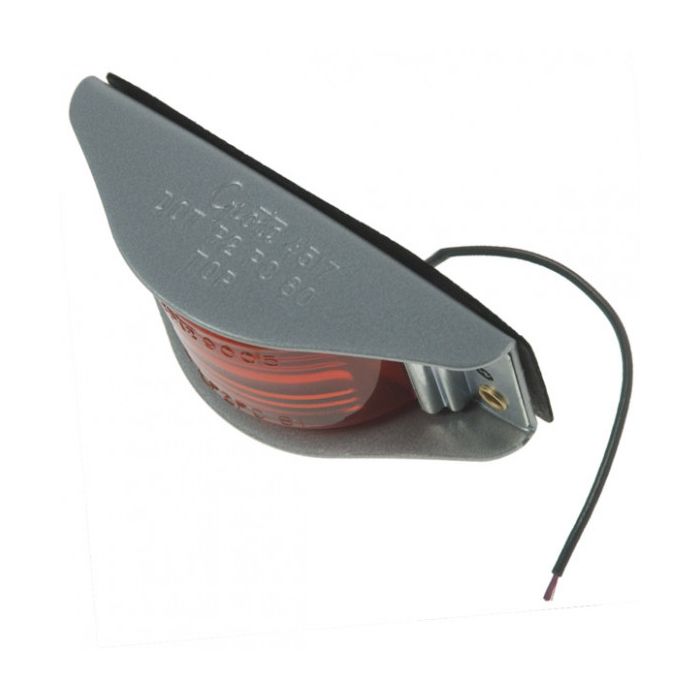

Grote 45172 Red Narrow-Rail Incandescent Clearance/Marker Light with Steel Housing

Ensure maximum visibility and compliance on your heavy-duty truck or trailer with the Grote 45172 Narrow-Rail Clearance/Marker Light. This robust incandescent lamp is specifically engineered for rugged applications, featuring a protective steel housing that offers superior resistance to impact and harsh road conditions compared to plastic-only models.

The lamp utilizes a bright red Acrylic lens and a reliable #193 bulb (2 CP). Its flat back design means there is no need for a separate lamp socket hole for installation, simplifying the mounting process. For a secure and weather-tight installation, the light comes equipped with a seal-tight expanded rubber gasket.

Designed for versatility, the Grote 45172 offers two- or four-hole screw mounting for easy retrofit and meets multiple FMVSS 108 requirements (P2, P3, and PC). The PC function is achieved when the lamp is mounted at a 45∘ angle, allowing it to serve as both a clearance and a side marker light for full compliance.

Key Features & Benefits:

• Heavy-Duty Construction: Features a durable steel housing for maximum protection and longevity in harsh environments.
• Narrow-Rail Design: Specifically sized for truck and trailer applications with narrow rails or limited mounting space.
• Incandescent Brightness: Utilizes a reliable #193 bulb with a vivid red acrylic lens.
• Seal-Tight Gasket: Includes a seal-tight expanded rubber gasket to protect against moisture and dirt intrusion.
• Easy Retrofit: Flat back design and two- or four-hole screw-on mounting simplify replacement and installation (blunt cut connection).
• FMVSS Compliant: Functions as a P2, P3, and PC rated light (PC-functionality achieved when mounted at 45∘).
• Voltage/Amperage: Operates at 12V DC with a low draw of 0.33A.
