CLEARANCE/MARKER LAMP - RED - LED - MICRONOVA® - PC - W/INTEGRATED AMP CONNECTOR

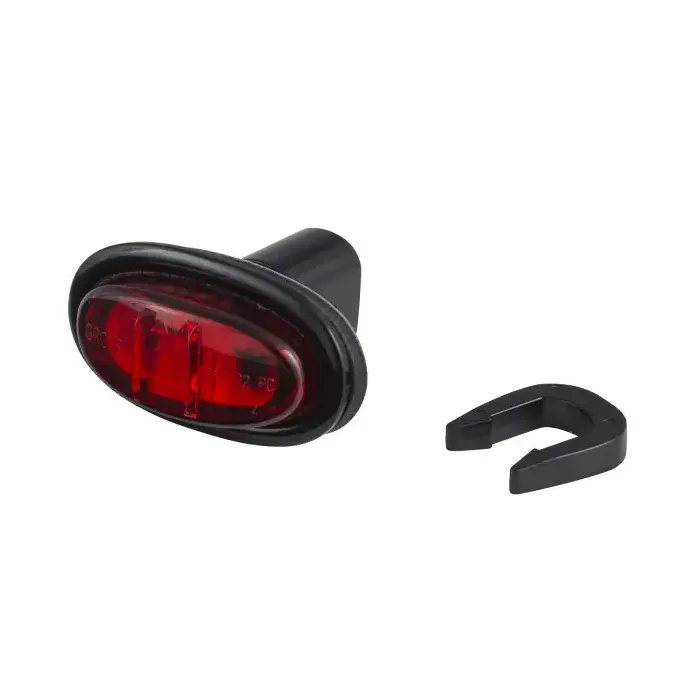

Grote 45302 MicroNova® Oval Red LED PC Clearance Marker Light (12V, .75" Grommet)

The Grote 45302 MicroNova® Oval Red LED PC Clearance Marker Light is the ultimate solution for demanding heavy-duty applications that require a compact, highly durable, and compliant signal lamp. Part of the innovative MicroNova® line, this sleek, low-profile light is small in size but powerful in visibility, operating on 12V DC with an ultra-low draw of just 0.05A.

The 45302 is engineered for the highest level of protection and versatile compliance:

• PC Rated Corner Visibility: Fully PC Rated, meaning it meets the requirements for both side marker and clearance functions when mounted at a 45° angle, providing critical wide-angle visibility.
• Ultimate Durability: Features Encapsulant Potting for total circuit board protection against severe road vibration, shock, and corrosive elements.
• Sealed & Secure Mount: The Grommet Mount design fits a 0.75-inch mounting hole with no exposed fasteners for a clean, damage-resistant look. It also includes an integrated theft-deterrent feature.
• Sealed Connection: Utilizes a Hardshell connection (Integrated AMP Connector) and Hermetic Lens-to-Housing Seal to eliminate moisture entry and ensure electrical reliability.
• Low-Profile Design: Its sleek, aerodynamic oval shape is less susceptible to damage from impacts and snags.

Choose the Grote 45302 for a dependable, sealed, and PC-compliant LED solution, backed by a 3-Year Warranty.

Key Features & Specifications:

• SKU: 45302
• Product Line: MicroNova® LED
• Type: PC Rated Clearance/Marker Lamp
• Color/Lens: Red
• Shape: Oval (Compact, Low-Profile)
• Mounting Hole: 0.75 Inch
• Voltage/Amps: 12V DC / Ultra-low 0.05 Amps
• Connection: Hardshell (Integrated AMP Connector)
• Durability: Encapsulant Potted, Hermetic Seal, Theft-Deterrent
• Compliance: Meets FMVSS 108 (PC Rated).
• Warranty: 3 Years.
