CLEARANCE/MARKER LAMP - 2.5IN DIAMETER - RED - SEALED W/OPTIC LENS

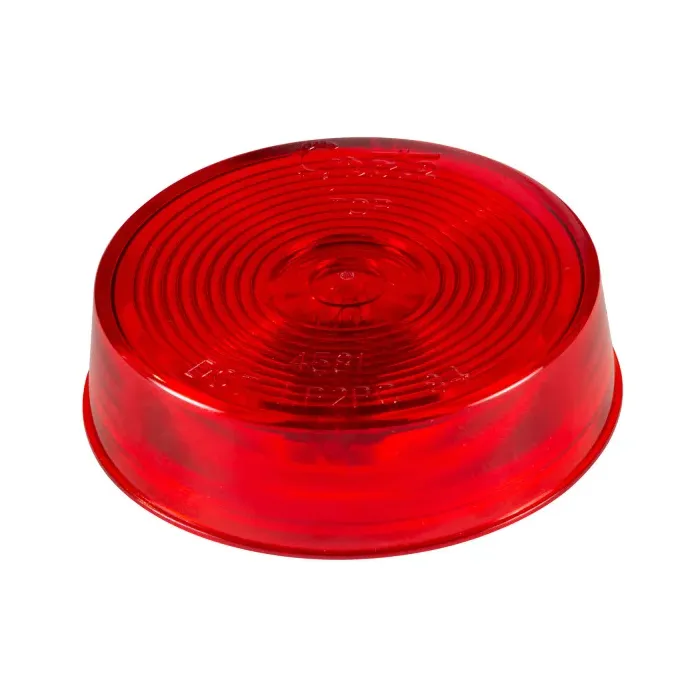

Grote 45812 Clearance Marker Lamp (Red, 2.5-Inch Round, Optic Lens, Incandescent)

The Grote 45812 Clearance Marker Lamp is a traditional, red 2.5-inch round incandescent light featuring the enhanced distribution of an Optic Lens. This sealed lamp is constructed with a robust Polycarbonate housing and lens and features a hermetic lens-to-housing seal for moisture and weather protection. It uses a common PL-10 plug connection and is designed for easy twist-on mounting into all popular 2.5-inch grommets or brackets. It meets FMVSS 108 P2 and PC functions (PC function achieved when mounted at a 45° angle).

Engineered for reliable incandescent service and excellent light distribution:

• Incandescent Power: Uses a 2 CP, 12-volt bulb rated for 12,000+ hours of service life.
• Optic Lens: Lens design optimizes light output and distribution for required marking functions.
• Sealed Construction: Hermetic seal protects the bulb and wiring from water, dirt, and road debris.
• PC Functionality: Meets the requirements for PC (45° angle) mounting.
• Connection: Uses the common PL-10 plug-in connection type.

Choose the Grote 45812 for a durable, sealed, red 2.5-inch incandescent marker light with an Optic Lens.

Key Features & Specifications:

• SKU: 45812
• Product Line: 2.5-Inch Round Clearance Markers
• Type: Clearance/Marker Lamp
• Light Source: Incandescent (12V, 2 CP)
• Color/Lens: Red (Red Polycarbonate Lens)
• Diameter: 2.5 Inch Round
• Connection: PL-10 Plug
• Mounting: Grommet/Bracket Mount
• Feature: Optic Lens, Hermetic Seal, FMVSS P2, PC
• Amperage: 0.33A
