CLEARANCE/MARKER LAMP - 2IN DIAMETER - RED - SEALED W/OPTIC LENS

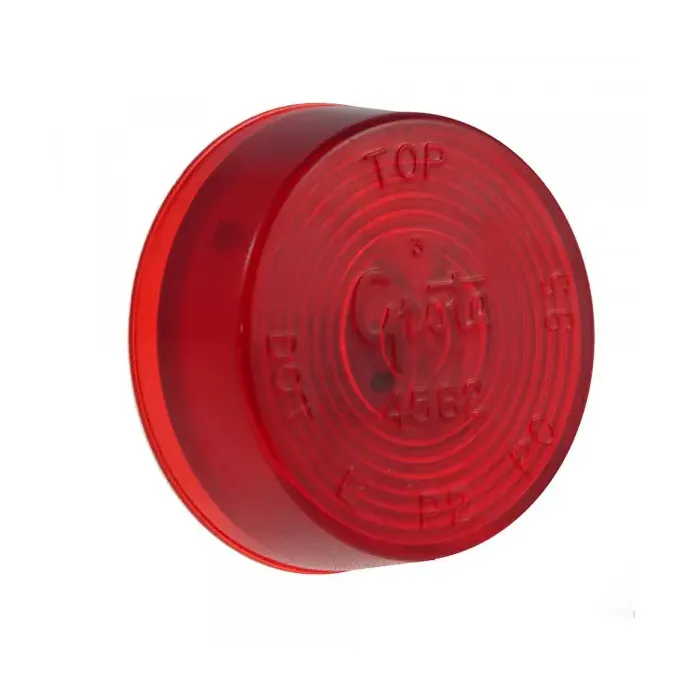

Grote 45822 2" Round Red Sealed Clearance Marker Lamp – Optic Lens

The Grote 45822 is a versatile and durable signal lighting component designed to survive the harshest road environments. This 2-inch round lamp features a hermetic lens-to-housing seal, which provides a permanent, weather-tight barrier against moisture, dust, and road salt, preventing internal corrosion and premature failure.

A standout feature of this 12-volt marker light is its high-performance 12,000+ hour bulb, which significantly reduces maintenance cycles and downtime. Its twist-on mounting design ensures a secure fit into all popular brackets and grommets, while its compact profile makes it ideal for narrow rails and tight applications. When mounted at a 45-degree angle, the 45822 meets PC function requirements, allowing it to act as both a clearance and side marker light with 180° visibility.

Key Features:

• Extended Service Life: Equipped with a 12,000+ hour bulb for maximum uptime and reliability.
• Hermetic Seal: Sonically welded polycarbonate lens and housing lock out environmental contaminants.
• Dual-Function Visibility: Meets PC and P2 requirements for both clearance and marker functions (when mounted at 45°).
• Universal Fitment: Engineered to fit all standard 2" grommets and brackets for effortless replacement.
• Rugged Construction: Impact-resistant polycarbonate material resists UV damage and road debris.
• Standard Connection: Features a PL-10 connection for a secure electrical bond with common pigtails.

Specifications:

• Part Number: 45822
• Diameter: 2"
• Light Color: Red
• Lens Color: Red
• Voltage: 12V
• Amperage: .33A
• Bulb Rating: 2 CP (Candlepower)
• Mounting Type: Twist-On (Grommet or Bracket)
• Connection Type: PL-10
• Regulations: FMVSS 108; P2, PC
• VMRS Code: 034-004-021
• Warranty: 1-Year Grote Warranty
