CLEARANCE/MARKER LAMP - 2IN - RED - MARKER LAMP - SUPERNOVA® LED - PC RATED

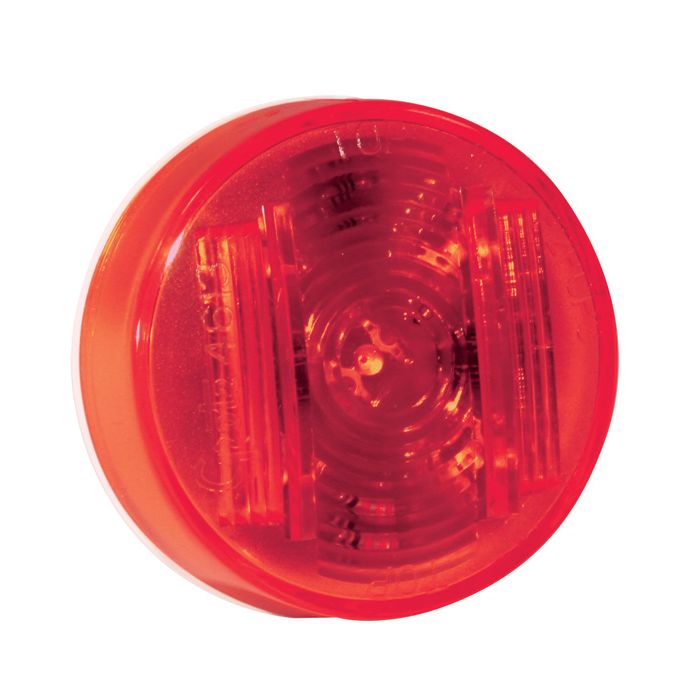

Grote 46132 SuperNova® 2" Round Red LED Clearance Marker Light (PC Rated, 12V)

The Grote 46132 SuperNova® Red LED Clearance Marker Light is the ultimate choice for premium, heavy-duty signaling on trucks, trailers, and commercial vehicles. This compact 2-inch round lamp is part of the Grote SuperNova® family, delivering superior visibility and extreme durability.

Unlike standard marker lights, the 46132 is PC Rated, meaning it can be mounted at a 45° angle while still functioning as both a clearance and side marker light.

• PC Rated Visibility: Meets SAE PC function when mounted at an angle, providing wide-angle light output for enhanced safety and compliance.
• Maximum Protection: Features advanced Encapsulant Potting to totally protect the circuit board, alongside a Hermetic Lens-to-Housing Seal, making it virtually impervious to water, corrosion, and vibration.
• Corrosion-Proof Terminals: Equipped with tin-plated, solid-brass terminals that are sealed to the housing, preventing corrosion and eliminating failure-causing leak paths—a key longevity feature.
• Easy LED Upgrade: Uses the same UBS double-seal pigtail and standard PL-10 connection as incandescent versions, allowing for a fast and simple Plug-and-Go® retrofit using popular 2-inch grommets or brackets (mounting accessories sold separately).

Built with a durable polycarbonate lens and housing, the Grote 46132 is designed for the toughest road conditions, backed by an exceptional 10-Year Warranty for long-term peace of mind.

Key Features & Specifications:

• SKU: 46132
• Product Line: SuperNova® LED
• Type: Clearance/Side Marker Lamp
• Lens/Color: Red
• Shape/Size: 2" Round (2-inch Diameter, 3/4" Depth)
• Voltage/Amps: 12V DC / 0.06A (Ultra-low current draw)
• Mounting: Grommet or Bracket Compatible
• Certification: SAE PC Rated, FMVSS 108 (P2, PC, P3)
• Connection: PL-10 Female Pin
• Warranty: 10-Year
