CLEARANCE/MARKER LAMP - 2.5IN - RED - SUPERNOVA® LED - PC RATED

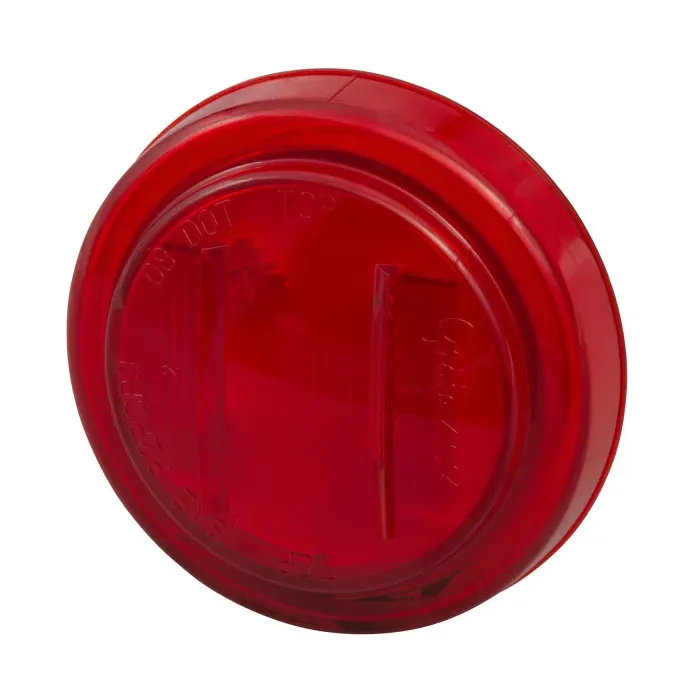

Grote 46142 SuperNova® Red LED Clearance/PC Marker Light - 2.5" Round (12V)

The Grote 46142 SuperNova® Red LED Clearance Marker Light is the industry leader in durability and visibility for heavy-duty vehicles. This 2.5-inch round lamp is PC Rated, allowing it to legally function as both a side marker and clearance light simultaneously when mounted correctly, ensuring maximum compliance and safety at corners.

Part of Grote’s premium SuperNova® line, this Red LED light operates on 12V DC with an incredibly low 0.06 Amp current draw. The 46142 is engineered for unmatched longevity, making it the superior choice for reducing fleet maintenance costs:

• Total Circuit Protection: Features Encapsulant Potting which completely seals the circuit board, providing total protection against road vibration, shock, and corrosive elements like road salt and moisture.
• Corrosion Resistance: Tin-plated, solid brass terminals are hermetically sealed to the housing, eliminating leak paths for superior electrical reliability.
• Plug-and-Go® Retrofit: Designed with a PL-10 connection that uses the same UBS double-seal pigtail as incandescent versions, allowing for a quick, hassle-free LED upgrade without re-wiring.
• Versatile Mounting: Supports both grommet and bracket mount applications for flexible installation on your truck or trailer.

Trust the Grote 46142 for a dependable, PC Rated LED marker light backed by a remarkable 10-Year Warranty.

Key Features & Specifications:

• SKU: 46142
• Product Line: SuperNova® LED
• Type: PC Rated Combination Clearance/Side Marker Lamp
• Color/Lens: Red
• Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
• Shape/Size: 2.5" Round (2 1/2" Diameter)
• Durability: Encapsulant Potted, Hermetically Sealed Terminals
• Mounting: Grommet or Bracket Mount
• Connection: PL-10 (Plug-and-Go® Retrofit Capable)
• Compliance: Meets FMVSS 108 (PC Rated).
• Warranty: 10 Years.
