CLEARANCE/MARKER LAMP - 2.5IN - YELLOW - SUPERNOVA® LED - PC RATED

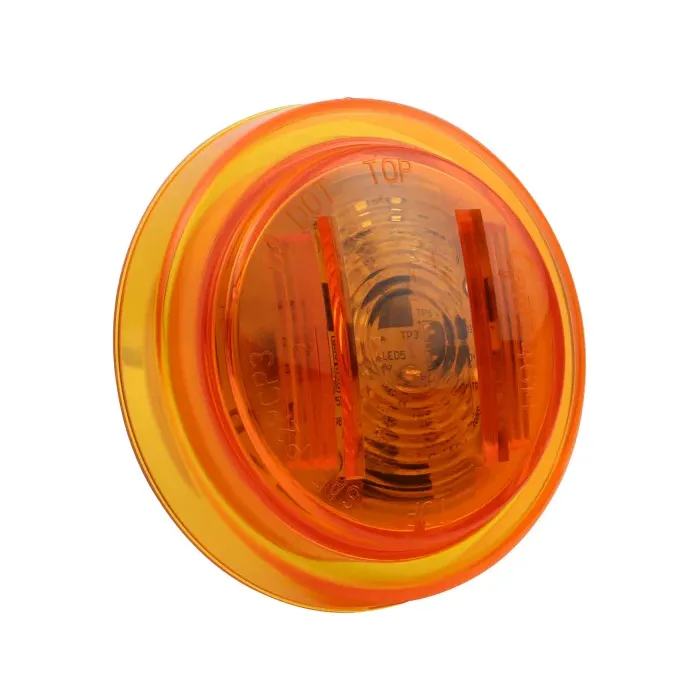

Grote 46143 SuperNova® Amber LED Clearance/PC Marker Light - 2.5" Round (12V)

The Grote 46143 SuperNova® Amber LED Clearance Marker Light is the industry standard for uncompromising durability and versatile lighting compliance. This premium 2.5-inch round lamp is PC Rated, allowing it to legally function as both a side marker and clearance light simultaneously when mounted at the required 45° angle, ensuring total safety and FMVSS 108 compliance at all corners.

Part of Grote’s elite SuperNova® line, this Amber LED light operates on 12V DC with an exceptionally low 0.06 Amp current draw. The 46143 is engineered with advanced features to maximize its lifespan:

• Total Circuit Protection: Features Encapsulant Potting which completely seals the circuit board, providing total protection against severe road vibration, shock, and corrosive elements like road salt.
• Corrosion Resistance: Tin-plated, solid brass terminals are hermetically sealed to the housing, eliminating leak paths for superior electrical reliability.
• Plug-and-Go® Retrofit: Designed with a PL-10 connection that uses the same UBS double-seal pigtail as incandescent versions, allowing for a quick, hassle-free LED upgrade without re-wiring.
• Versatile Mounting: Supports both grommet and bracket mount applications for flexible installation on your truck or trailer.

Trust the Grote 46143 for a dependable, PC Rated LED marker light backed by a robust 10-Year Warranty.

Key Features & Specifications:

• SKU: 46143
• Product Line: SuperNova® LED
• Type: PC Rated Combination Clearance/Side Marker Lamp
• Color/Lens: Amber (Yellow)
• Voltage/Amps: 12V DC / Ultra-low 0.06 Amps
• Shape/Size: 2.5" Round (2 1/2" Diameter)
• Durability: Encapsulant Potted, Hermetically Sealed Terminals
• Mounting: Grommet or Bracket Mount
• Connection: PL-10 (Plug-and-Go® Retrofit Capable)
• Compliance: Meets FMVSS 108 (PC Rated).
• Warranty: 10 Years.
