CLEARANCE/MARKER LAMP,YELLOW,SEALED SINGLE BULB CLEARANCE/MARKER BRACKET KIT - RETAIL PACK

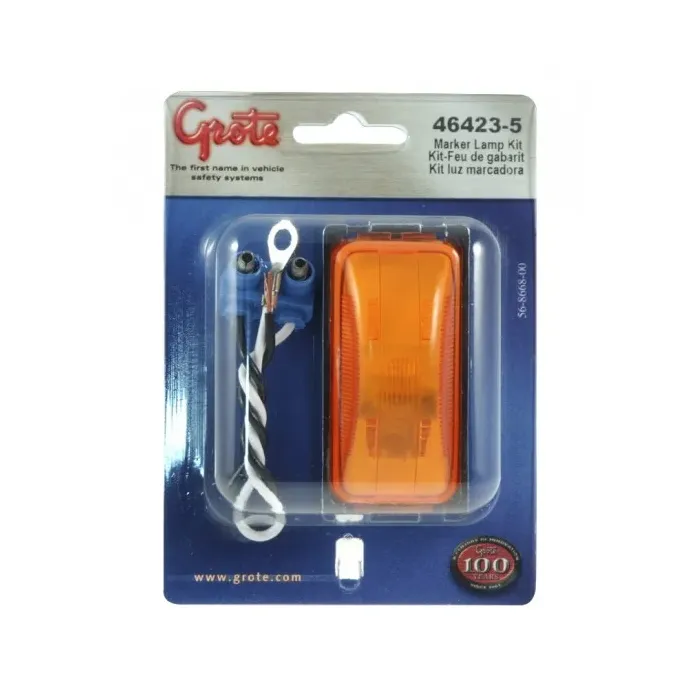

Grote 46423-5 3" Rectangular Amber Clearance Marker Light Kit – Retail Pack

The Grote 46423-5 is a comprehensive lighting kit designed for performance and longevity. This kit includes the premium 3" rectangular amber marker lamp, a sturdy 43980 mounting bracket, and a high-quality 67050 pigtail, giving you everything needed for a seamless, weather-tight installation.

Built to handle the rigors of the road, the 46423-5 features a hermetic lens-to-housing seal that permanently locks out moisture, dust, and road salt. The 12V version is equipped with an industry-leading 12,000+ hour bulb, significantly reducing maintenance intervals and downtime. Its slim, rectangular profile makes it the ideal choice for narrow rails or tight mounting spaces. When mounted at a 45-degree angle, this light meets PC function requirements, allowing it to provide 180° visibility as both a clearance and side marker light.

Key Features:

• Complete Kit Solution: Includes the Amber 3" lamp, 43980 mounting bracket, and 67050 double-seal pigtail.
• Extended Life Bulb: Features a heavy-duty 12,000+ hour bulb for reliable, long-term operation.
• Hermetically Sealed: Sonically welded polycarbonate lens and housing prevent moisture intrusion and corrosion.
• Narrow Profile: Rectangular design is specifically engineered to fit narrow applications where space is limited.
• UBS Pigtail Technology: Uses Grote’s double-seal Ultra-Blue-Seal® (UBS) pigtail for a superior electrical connection.
• Wide-Angle Visibility: Meets PC function requirements when mounted at a 45° angle.

Specifications:

• Part Number: 46423-5
• Size: 3" (Rectangular)
• Light Color: Amber
• Lens Color: Amber
• Housing Color: White
• Material: Polycarbonate Lens & Housing
• Voltage/Amperage: 12V / .33A
• Mounting Type: Bracket (Included)
• Connection Type: Female Pin / Pigtail (Included)
• Regulations: FMVSS 108; P2, PC
• VMRS Code: 034-004-021
• Warranty: 1-Year Grote Warranty
