SKU
46740
Manufactures SKU
GROTE 46740
CLEARANCE/MARKER LAMP - SPLIT COLOR - SEALED 2-BULB
$4.86
EA

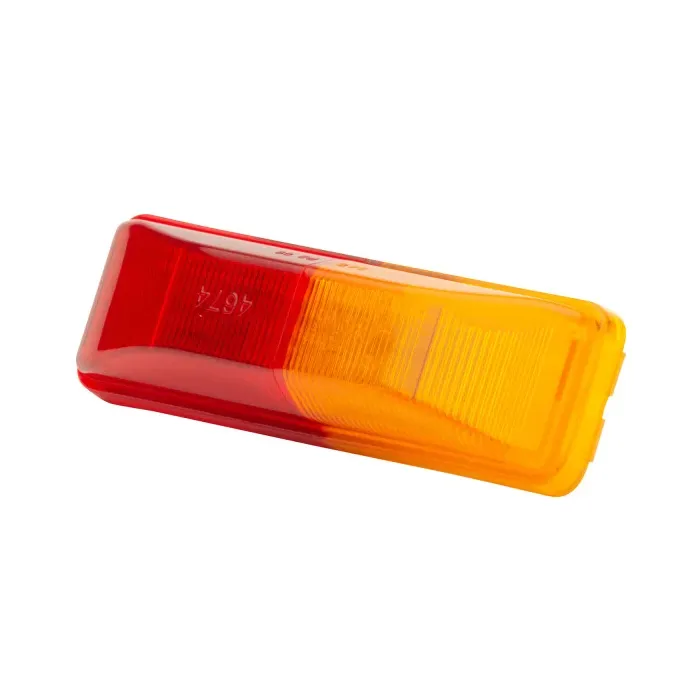

Grote 46740 Red/Amber Split Lens Rectangular Clearance Marker Light
The Grote 46740 is a high-performance, double-bulb clearance marker engineered for specialized mounting applications, such as the fenders of large pull-behind trailers and toy haulers. Its innovative split-lens design features both Red and Amber colors, allowing a single fixture to meet legal requirements when properly positioned—must be mounted so the red lens faces the rear and the amber lens faces the front of the trailer.
Built for the long haul, this 12-volt lamp features a hermetic lens-to-housing seal that locks out moisture, dust, and corrosive road salts. The double-bulb configuration is protected by a high-impact polycarbonate housing, and the 12V version is equipped with long-life bulbs rated for 12,000+ hours of service. Whether you are upgrading an older trailer or replacing a broken unit, the Grote 46740 offers a durable, professional-grade solution for narrow mounting spaces.
Key Features:
The Grote 46740 is a high-performance, double-bulb clearance marker engineered for specialized mounting applications, such as the fenders of large pull-behind trailers and toy haulers. Its innovative split-lens design features both Red and Amber colors, allowing a single fixture to meet legal requirements when properly positioned—must be mounted so the red lens faces the rear and the amber lens faces the front of the trailer.
Built for the long haul, this 12-volt lamp features a hermetic lens-to-housing seal that locks out moisture, dust, and corrosive road salts. The double-bulb configuration is protected by a high-impact polycarbonate housing, and the 12V version is equipped with long-life bulbs rated for 12,000+ hours of service. Whether you are upgrading an older trailer or replacing a broken unit, the Grote 46740 offers a durable, professional-grade solution for narrow mounting spaces.
Key Features:
- Dual-Color Split Lens: Red and Amber lens combination provides front and rear legal coverage for wide trailers.
- Hermetic Seal: Sonically welded lens and housing prevent water wicking and internal corrosion.
- Extended Life: Features a 12,000+ hour bulb for maximum uptime and reduced maintenance.
- Narrow Mounting: Rectangular, double-bulb design is ideal for tight spaces like fender mounts.
- Wide-Angle Visibility: Meets PC function requirements when mounted at a 45-degree angle.
- UBS Pigtail Compatible: Uses Grote’s double-seal Ultra-Blue-Seal® (UBS) pigtails for a superior electrical connection.
- Part Number: 46740
- Lens Color: Red / Amber (Split)
- Shape: Rectangular (approx. 3.79" x 1.20")
- Material: Polycarbonate Lens & Housing
- Voltage/Amperage: 12V / .66A
- Bulb Rating: (2) 2 CP (12,000+ Hours)
- Mounting Type: Bracket (Uses 43780, 43783, or 43850)
- Connection Type: Male Pin (Accepts 66980, 66981, or 66982 Pigtails)
- Regulations: FMVSS 108; P2
- VMRS Code: 034-004-021
Lens Color
RED / YELLOW
Shipping Weight (lbs)
0.080000
Total Height
1.5
Total Width
3.5
